QHY268C-PH Color Photographic APS-C Camera

QHY268C-PH Color Photographic APS-C Camera

Starting Price: $1,999.00 Sale Price: $1,699.00 Price as Configured: $1,699.00
Brand: QHYCCD / SKU: QHY-110058
The QHY268M/C is a new generation of back-illuminated CMOS cameras with true 16-bit A/D and 3.76um pixels. This Sony sensor is an ideal CMOS sensor exhibiting no amplifier glow. 16-bit A/D gives high resolution sampling of the whole full well range. Digitizing 0-65535 levels yields a smooth image with continuous gradation of grayscale levels.
Recommended Add-ons and Accessories
Product Price Quantity
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
About This Product
Why do you need an Active Extension Cable?

According to the characteristics of USB3.0, the maximum supported cable length of USB3.0 is about 3 meters, or the transmission stability cannot be guaranteed above 3 meters. In order to ensure the image quality, the standard USB cable length of QHY is 1.8 meters.
$50.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
$50.00
Qty:
View Details
« Back to All Add-ons
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
About This Product
Why do you need an Active Extension Cable?

According to the characteristics of USB3.0, the maximum supported cable length of USB3.0 is about 3 meters, or the transmission stability cannot be guaranteed above 3 meters. In order to ensure the image quality, the standard USB cable length of QHY is 1.8 meters.
QHY-ComboD3 (20109) - QHY Adapter Kit Combo D3 (for Nikon F Lens)
QHY-ComboD3 (20109) - QHY Adapter Kit Combo D3 (for Nikon F Lens)
$58.00
Qty:
View Details
« Back to All Add-ons
QHY-ComboD3 (20109) - QHY Adapter Kit Combo D3 (for Nikon F Lens)
About This Product
  • Achievable back focus length of 46.5 mm with adaptable Nikon F lens
  • Includes:
    • 1x 10mm M54 Nikon F Adapter
    • 1x 4mm M54 Screwed Adapter
    • 1x QHY 2,5mm 2" Filter Fixer #1932780
    • 1x 3mm Spacer
    • 1x 0,5mm Spacer
    • 8x 16mm M3 screws

The compatible QHY cameras are as follows:

  • QHY268C
  • QHY600C
  • QHY168C
  • QHY247C
  • QHY128C
  • QHY410C
  • QHY367C
QHY-020112 - QHY M54 All-In-One-Kit
QHY-020112 - QHY M54 All-In-One-Kit
$135.00
Qty:
View Details
« Back to All Add-ons
QHY-020112 - QHY M54 All-In-One-Kit
About This Product
  • Compatible with all cooled CMOS cameras, QHY CFW3-S-SR, CFW3-S-US, CFW3-L, and OAG-M.
  • Kit includes:
    • 1x 5mm M54 to M48 Adapter
    • 1x 3mm M54 to M42 Adapter
    • 1x QHY 2,5mm 2" Filter Fixer #1932780
    • 1x 4mm M54 Screwed Adapter (original name QHY #020070)
    • 1x Cam Top Adapter (QHY #020063)
    • 1x 0.5mm/1mm/2mm/3mm/7mm/10mm/14mm Spacer
    • 8x 8mm M3 screws
    • 8x 10mm M3 screws
    • 8x 12mm M3 screws
    • 8x 14mm M3 screws
    • 8x 16mm M3 screws
    • 8x 21mm M3 screws
    • 8x 24mm M3 screws
    • 8x 28mm M3 screws
    • 8x 36mm M3 screws
    • 8x 50mm M3 screws
QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
$60.00
Qty:
View Details
« Back to All Add-ons
QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
About This Product
Why do you need an Active Extension Cable?

According to the characteristics of USB3.0, the maximum supported cable length of USB3.0 is about 3 meters, or the transmission stability cannot be guaranteed above 3 meters. In order to ensure the image quality, the standard USB cable length of QHY is 1.8 meters.
QTY:
Price as Configured: $1,699.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

QHY estimates that 2-inch filters are large enough to cover the whole sensor area, but they’re expensive. As an alternative, QHY estimates that a 36mm filter can be matched with scopes whose focal ratio is smaller than f/4. However, if your scope has a large focal ratio like f/2.8, QHY recommends 2-inch filters.

Model BFL Consumed Filters Supported
QHY268M



QHY268C (New Version after 2023)

12.5mm
CFW3M-US 17.5mm 7 position



36mm unmounted

CFW3L 21.5mm 7 position



2inch mounted/50mm unmounted

OAGM 10mm
From 2023, the top part of QHY268C will change to the shorter one just like that of 268M.

The earlier version of the 268C had a back focal length of 17.5mm, and since it cannot connect to the scope without camera angle adjuster, the actual BFL is 17.5mm+6mm=23.5mm. Now the 268C’s BFL is 14.5mm, providing more space for a filter wheel drawer, an electric CAA, or DSLR Lens.

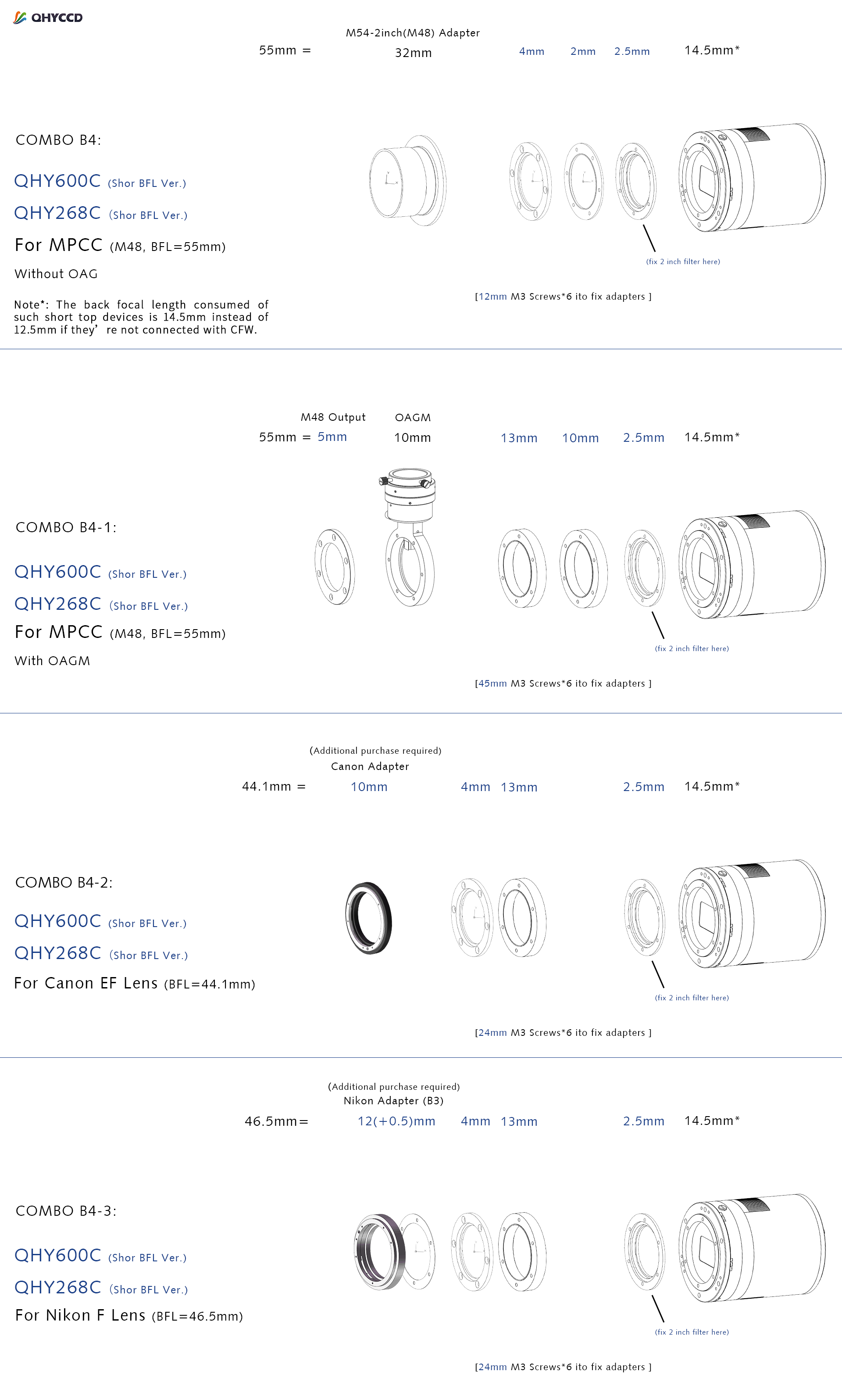

The new 268C adapts a new kit B4 which can best make use of the standard accessories. B4-2 and B4-3 share common parts from the necessary B4-1(for MPCC). When you need to connect a Canon or Nikon lens, you only need to get one Canon/Nikon adapter, not a “kit” like D2 or D3 anymore.
