Optec DirectSync APO Motor for 2.5" Focusers

Optec DirectSync APO Motor for 2.5" Focusers

Starting Price: $325.00
Price as Configured: $325.00
Brand: Optec / SKU: OP-19776

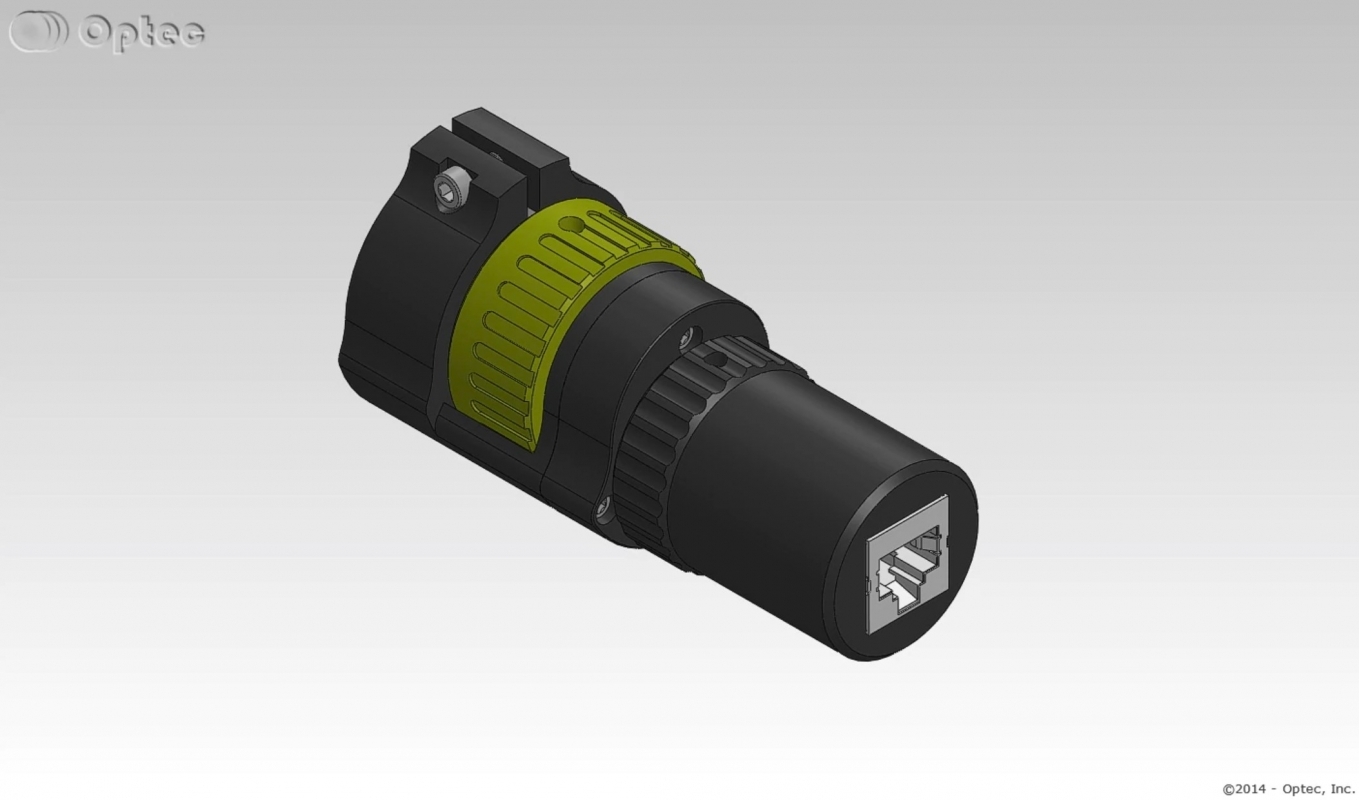

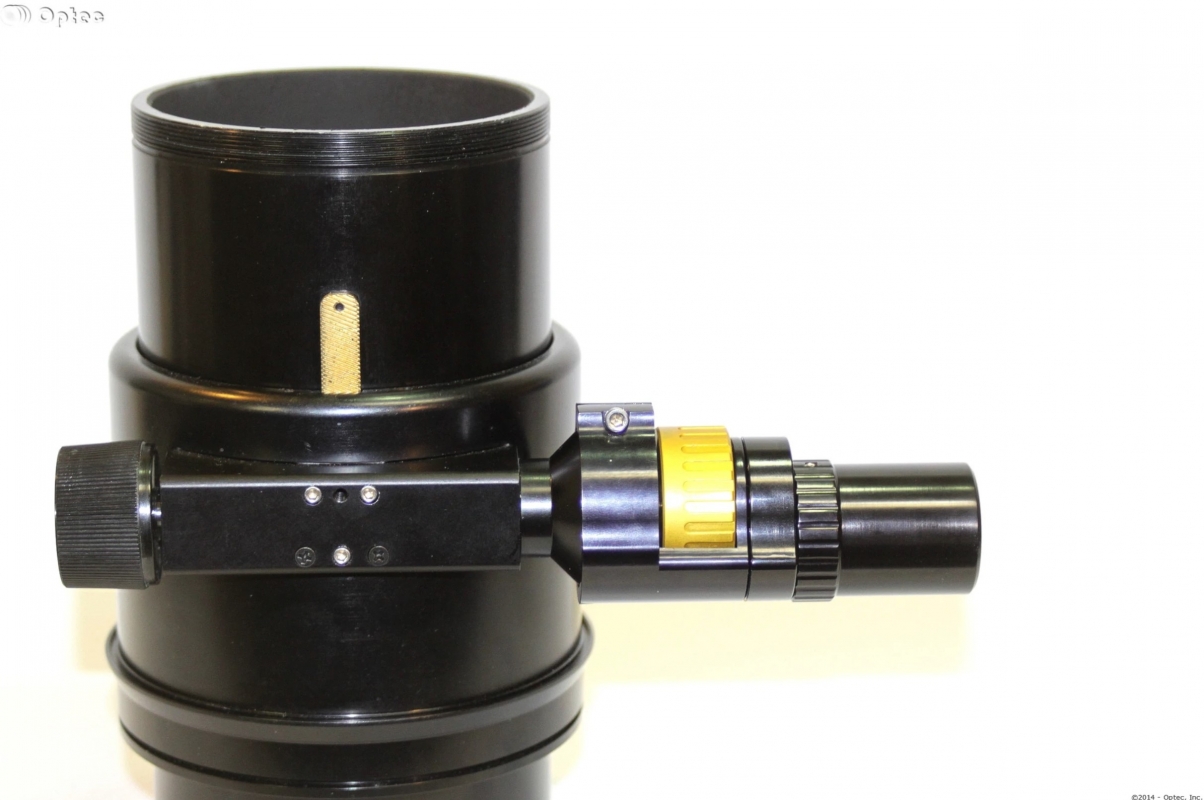

Optec's FocusLynx DirectSync APO system is an aftermarket add-on for several import Apochromat telescopes with dual-speed focusers. Meade Instruments, Stellarvue, and other telescope manufacturers include compatible focusers for the DirectSync APO motor. Like all Optec DirectSync and QuickSync motors, the new DirectSync APO motor provides a direct drive motor that can be easily disengaged for manual focusing. The DirectSync APO motor is easy to install and provides a digital focusing solution that also allows manual focus when at the telescope.

This version requires the external Optec FocusLynx controller. If you would prefer the fully integrated solution, consider the ThirdLynx model .

Recommended Add-ons and Accessories
Product Price Quantity
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
About This Product

The Focus Lynx Hand Control provides an easy, vibration-free method of focusing the telescope when using the FocusLynx Control Hub. Featuring IN and OUT buttons, a 2-line display, and Quick Sync synchronization capability. The FocusLynx Hand Control is a "must-have" option for any system where the operator may be at the telescope.

It includes an electronic Fine Focus Knob for greater control and tactile feedback while using eyepieces at the telescope. An embedded rotary encoder switch allows one-hand fine focus control while using an eyepiece. No need to move your eye away from the eyepiece - with this improvement the FocusLynx hand control provides simple, intuitive and precise control of the focus motor. The FocusLynx Hand Control plugs into the Hand Controller port on the bottom of the FocusLynx Control Hub using the included telephone handset cord.

$145.00 each
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
About This Product

The Optec Universal Mounting Bracket screws directly to the back of the FocusLynx Control Hub back and allows easy attachment to most any mount.

  • Material:  6061 aluminum, anodized black
  • Length:  4.9" (124mm)
  • Width:  4.7" (120mm)
  • Thickness: 0.1" (2.5mm)
  • Weight: 1.8 oz (50 g)
  • Mounting Holes:  Clearance for 1/4-20
  • Connection to FocusLynx:  Four 4-40 flathead screws (included)
$55.00 each
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
About This Product

Optec's FocusLynx Controller is capable of operating two focusers simultaneously and has full ASCOM compliance.

$350.00 each
QTY:
Price as Configured: $325.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.35" (85mm)
  • Weight: 5.2 oz (150 g)
  • Step Resolution: approx. 1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Connection to FocusLynx: Standard Ethernet cable (included)
  • Temperature Probe: Integrated Digital Sensor type TMP04FT9Z
  • Current Draw: Maximum draw approx. 350mA
