Track the Stars Mammoth Telescope Mount
Starting Price: $13,281.00
Price as Configured: $13,281.00
Price as Configured: $13,281.00
Brand: Track the Stars / SKU: TTS-300
NOTE: Shipping cost will be determined after the order is made and must be paid for before the mount and accessories will ship. A shipping quote can be obtained on request.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Configurable observatory mount system
The professional astronomers have known for years that the most compact and stable telescope mount is the ALT-AZ configuration. The benefit is a mount that’s stable and very compact so it will take up less space in the observatory.
More telescopes in parallel
It’s possible to mount more telescopes on the top dovetail saddle plate. Besides this the mount can be supplied with side mount dovetail saddles placed close to the altitude axle. Telescopes installed here will not demand any counterweight increasing the total capacity of the mount.
Precise go-to and tracking
The mount can automatically go-to any objects selected from the handpad or a connected PC, Ipad, Iphone, etc. Precise tracking for astrophotography with autoguiding capabilities.
Perfect eyepiece position, no meridian flip, maintain good collimation
The Alt-Az movement pattern of the mount ensures the eyepiece is always in a perfect viewing angle. This is especially important when using Bino Viewers. The mount never needs to perform a meridian flip (unlike German Equatorial Mounts). Therefore all your installed equipment (finders, guide scopes, cameras, filter wheels …) always stay in the best position where you can easily access it and you avoid cables being twisted unnecessarily. Finally keeping the optical tube assembly in the same angle minimizes the risk of destroying a good collimation of the optics by turning them upside down.
Simplicity on the outside, technology inside
All the technology and delicate working parts are sealed inside smooth anodized aluminum cylinders, so dirt, dust and moisture stay out. The streamlined, compact design also protects the mount from damage during transport or storage.

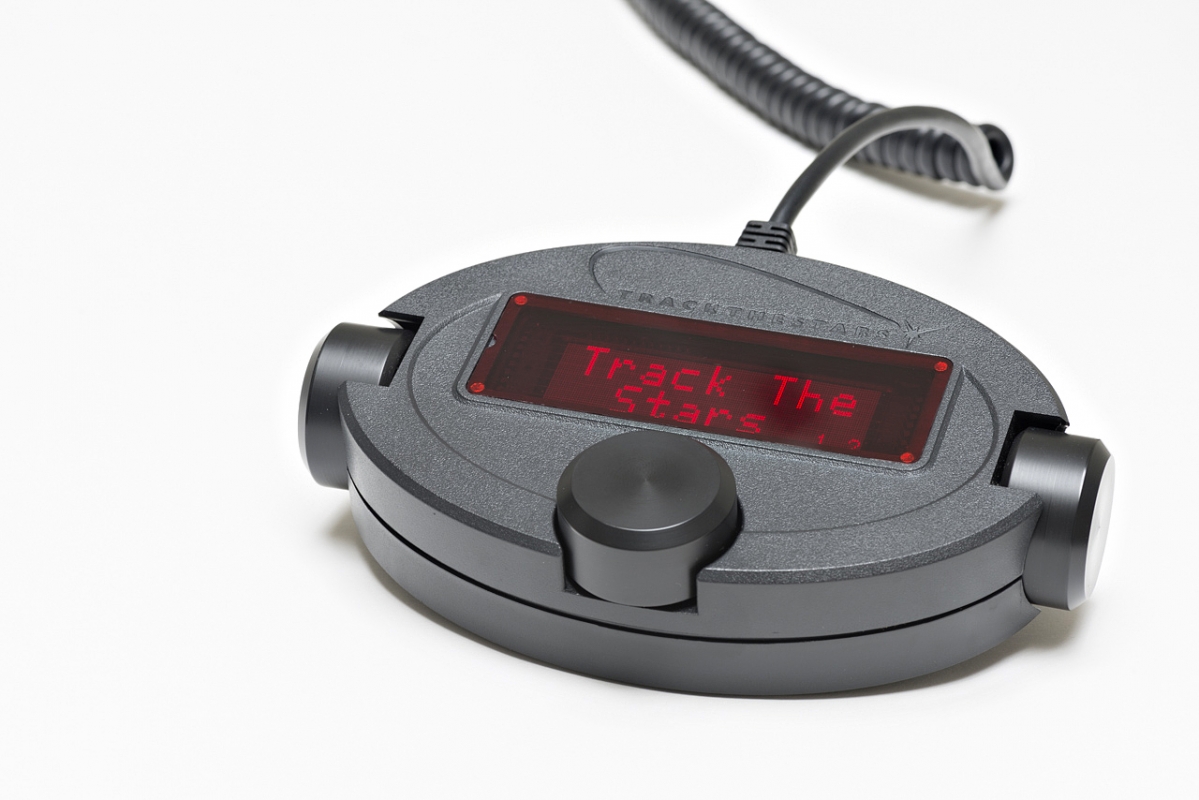

Convenient hand pad and intuitive user interface
Easy operation – even with your gloves on! – The hand pad is specially designed to ensure simple operation. No need to search for the right button. Roller knobs make it possible to navigate through the interface quickly. Go-to function lets you track any object in the extensive object catalog.
Interface connectors
You can connect a PC via the ASCOM (LX200) compatible connector to control the mount with any astronomy software supporting the ASCOM standard. Autoguiders can be connected through the dedicated ST4 standard connector. Finally the mount has a connector the the control of the optional telescope rOTAtor and a connector for the handpad.
Exact Drive – high precision tracking in a compact design
To be able to track the sky very precisely over long periods of time it is necessary to have a drive system with low and very smooth periodic error. Most high quality German Equatorial Mounts try to solve this problem with large diameter worm gear drives. These large diameter worm gear results in mounts that are large and heavy. For the TTS-300 Mammoth Az-drive, TTS created a drive system called “Exact Drive”. A unique combination of a worm gear and a roller drive ensures optimal tracking performance – with lower periodic error values and no sudden changes in tracking speed.

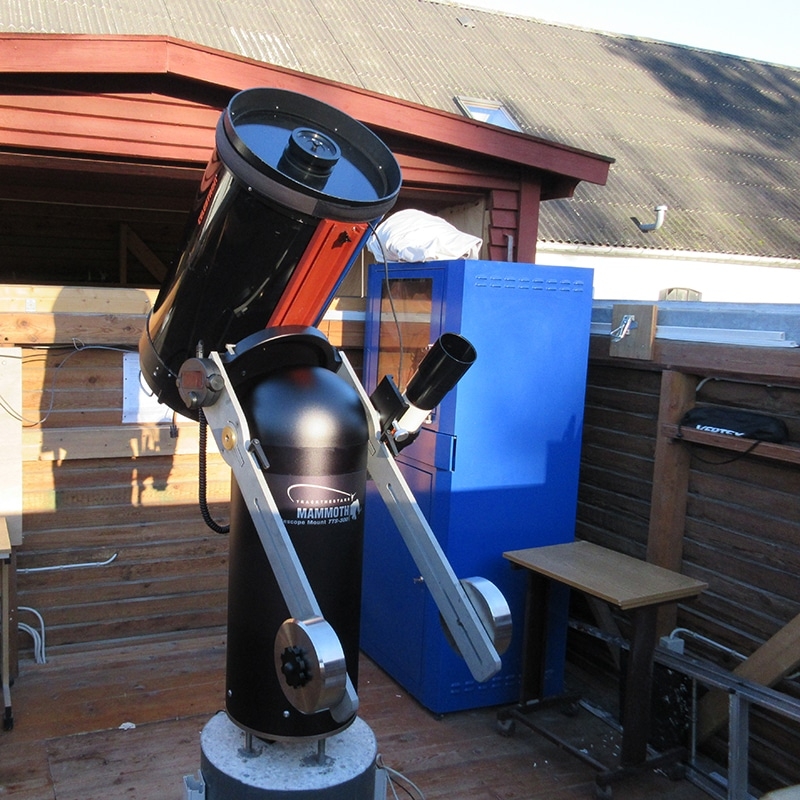

The TTS-300 Mammoth mount head is the heart of a highly flexible and configurable mount system. It’s possible to configure mount set-ups for visual observations, for long exposure astrophotography or several telescopes in parallel.
Alt-Az mount for stability, compactness and fast setup
The professional astronomers have known for years that the most compact and stable telescope mount is the ALT-AZ configuration. The benefit is a mount that’s stable and very compact so it will take up less space in the observatory.
More telescopes in parallel
It’s possible to mount more telescopes on the top dovetail saddle plate. Besides this the mount can be supplied with side mount dovetail saddles placed close to the altitude axle. Telescopes installed here will not demand any counterweight increasing the total capacity of the mount.
Precise go-to and tracking
The mount can automatically go-to any objects selected from the handpad or a connected PC, Ipad, Iphone, etc. Precise tracking for astrophotography with autoguiding capabilities.
Perfect eyepiece position, no meridian flip, maintain good collimation
The Alt-Az movement pattern of the mount ensures the eyepiece is always in a perfect viewing angle. This is especially important when using Bino Viewers. The mount never needs to perform a meridian flip (unlike German Equatorial Mounts). Therefore all your installed equipment (finders, guide scopes, cameras, filter wheels …) always stay in the best position where you can easily access it and you avoid cables being twisted unnecessarily. Finally keeping the optical tube assembly in the same angle minimizes the risk of destroying a good collimation of the optics by turning them upside down.
Simplicity on the outside, technology inside
All the technology and delicate working parts are sealed inside smooth anodized aluminum cylinders, so dirt, dust and moisture stay out. The streamlined, compact design also protects the mount from damage during transport or storage.
Convenient hand pad and intuitive user interface
Easy operation – even with your gloves on! – The hand pad is specially designed to ensure simple operation. No need to search for the right button. Roller knobs make it possible to navigate through the interface quickly. Go-to function lets you track any object in the extensive object catalog.
Interface connectors
You can connect a PC via the ASCOM (LX200) compatible connector to control the mount with any astronomy software supporting the ASCOM standard. Autoguiders can be connected through the dedicated ST4 standard connector. Finally the mount has a connector the the control of the optional telescope rOTAtor and a connector for the handpad.
Exact Drive – high precision tracking in a compact design
To be able to track the sky very precisely over long periods of time it is necessary to have a drive system with low and very smooth periodic error. Most high quality German Equatorial Mounts try to solve this problem with large diameter worm gear drives. These large diameter worm gear results in mounts that are large and heavy. For the TTS-300 Mammoth Az-drive, TTS created a drive system called “Exact Drive”. A unique combination of a worm gear and a roller drive ensures optimal tracking performance – with lower periodic error values and no sudden changes in tracking speed.
Includes:
- Mount head
- Top mount with counterweight arms
- Hand pad
- Hand pad cable
- PC connection cable
- Power cable
