QHY6060 FSI Scientific Cooled CMOS Camera
Starting Price: $40,000.00
Price as Configured: $40,000.00
Price as Configured: $40,000.00
Brand: QHYCCD / SKU: QHY-6060FSI (110115)

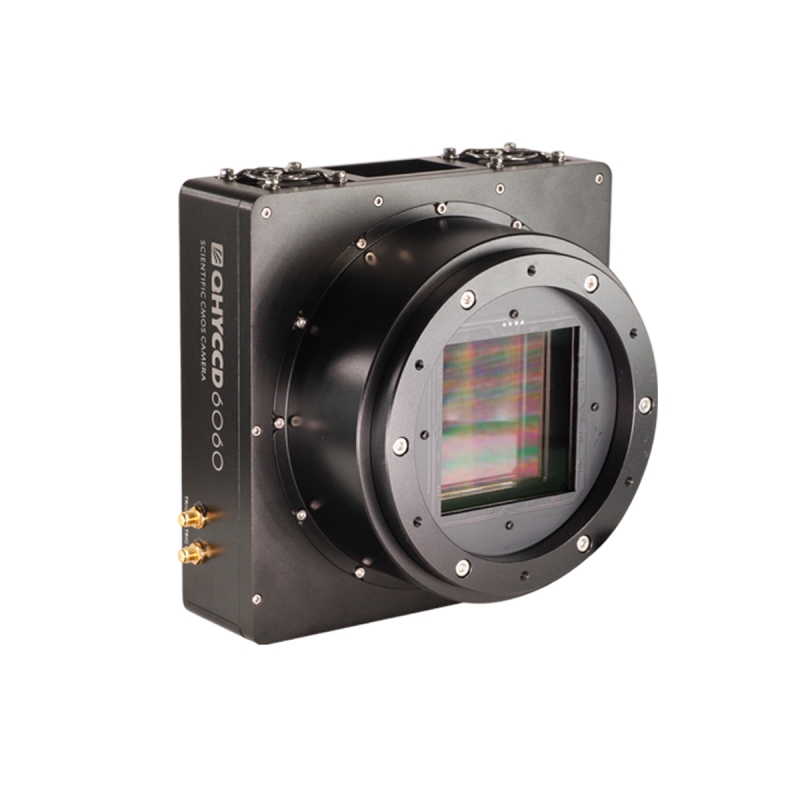

QHY6060 is a big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal) Gpixel Gsense6060 sensor, 10um pixel size, 14bit ADC, 6K*6K resolution. It has both a back-illuminated version and a front-illuminated version. The FSI version has 72% peak QE and the BSI version has 95% peak QE.

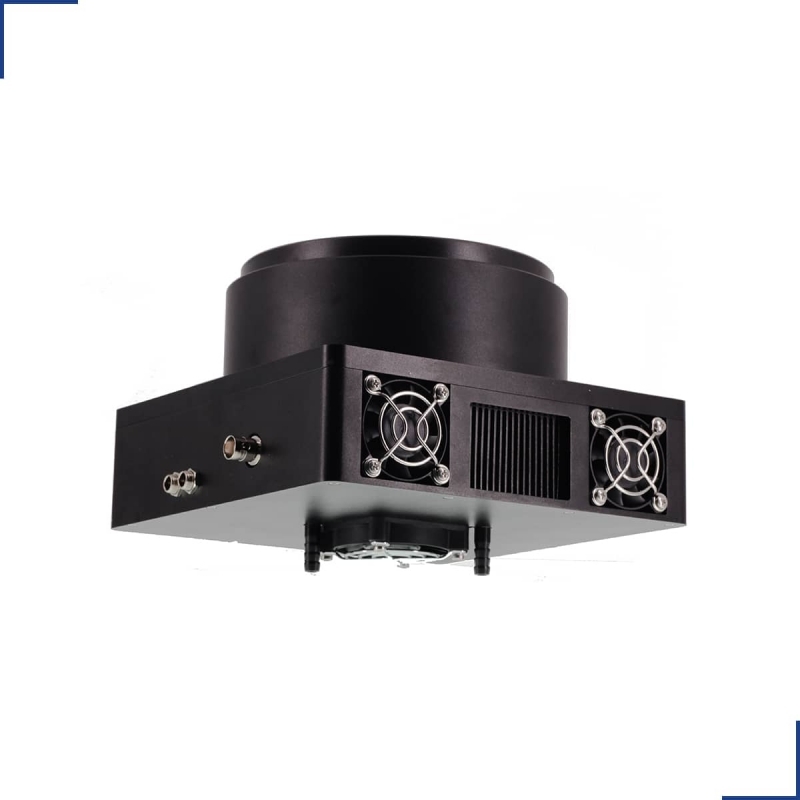

QHY6060 has a 2-stage TEC cooler and it is air-cooling / water cooling compatible. QHY6060 has USB3.0 high-speed interface.
The BSI QHY6060 also has a soft X-ray response. In order to use it in a full vacuum environment. The camera needs to be put into a vacuum environment. QHYCCD can offer a special customized design of the full vacuum version. Please contact us if you need this version.
SHIPPING NOTE: Shipping cost will be determined after the order is made and must be paid before the camera will ship. A shipping quote can be obtained on request.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
| Model | QHY6060FSI (Front illuminated version) QHY6060BSI (Back illuminated version) |
| CMOS Sensor | Gpixel GSENSE6060 FSI / BSI |
| Pixel Size | 10um x 10um |
| Sensor Surface Glass | Clear Glass |
| Effective Pixel Area | 6134*6134 |
| Total Pixel | 6200*6134 Includes the optic black area on left side and right side |
| Effective Pixels | 37.6 Megapixels |
| Effective Image Area | 61.34mm x 61.34mm |
| Fullwell | QHY6060FSI 70ke QHY6060BSI TBD |
| Peak QE | 72% (FSI version) 95%(BSI version) |
| A/D | 14-bit A/D |
| Sensor Size | 6×6 Medium Format |
| Full Frame Rate and ROI Frame Rate | QHY6060 2.5FPS(8bit speed 0) 3.5FPS(8bit speed1) 4FPS(8bit speed 2) 5FPS(8bit speed 3) 2.5FPS(16bit speed 1,2,3)QHY6060PRO TBD |
| Readout Noise | 4.7e- (at maximum analog gain in high gain channel) |
| Dark Current | FSI 0.2e/pixel/sec @ -15C BSI TBD |
| Exposure Time Range | 20us-300sec |
| Power Supply Input / Power Consumption | 12V DC input |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | 128MByte DDR2 |
| Air / Water Cooling | Support Both Air Cooling and Water Cooling |
| Cooling System | Dual Stage TEC cooler Below ambient temperature -25C Dual Stage TEC cooler with water Cooling Below ambient temperature -35C to -37C (water temperature 26C)(Test temperature +20°)Below ambient temperature -45C to -47C (water temperature 10C) |
| Recommended flow rates for water-cooled versions | 12ml/s |
| Anti-Dew Heater | Yes |
| Telescope Interface | See Mechanical Drawing |
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Back Focal Length | See Mechanical Drawing |
