QHY Mini GuideScope
Starting Price: $129.00 Sale Price: $109.00
Price as Configured: $109.00
Brand: QHYCCD / SKU: QHY-100062
When the pixels of a guide camera becomes small and QE becomes high, you may not need a big guide scope. Smaller pixels can detect the guide error in a shorter focal length. When the focal length is reduced, the FOV becomes larger, so it is easier to find bright guide stars.

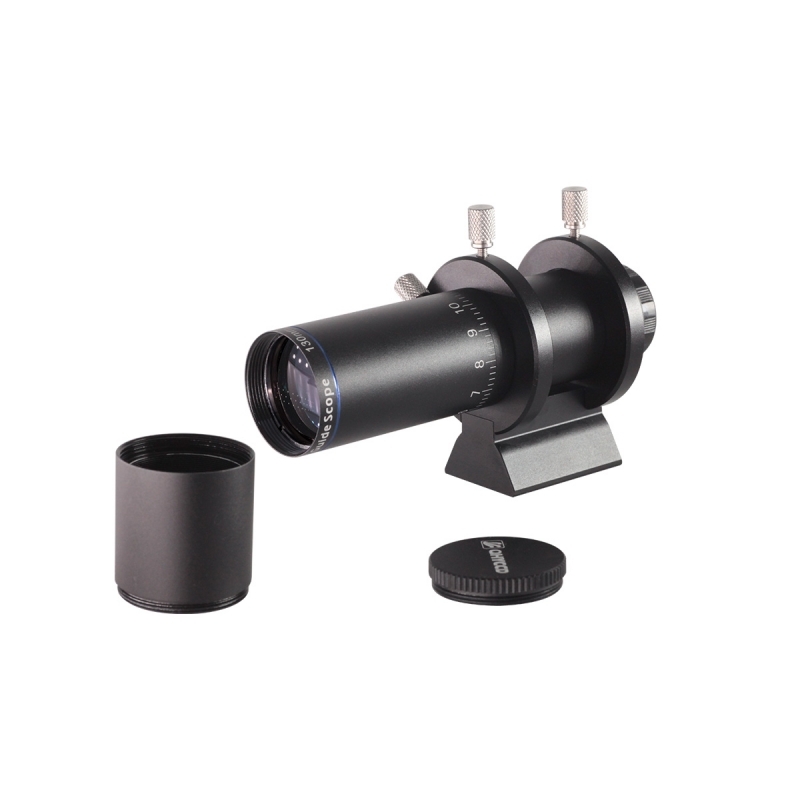

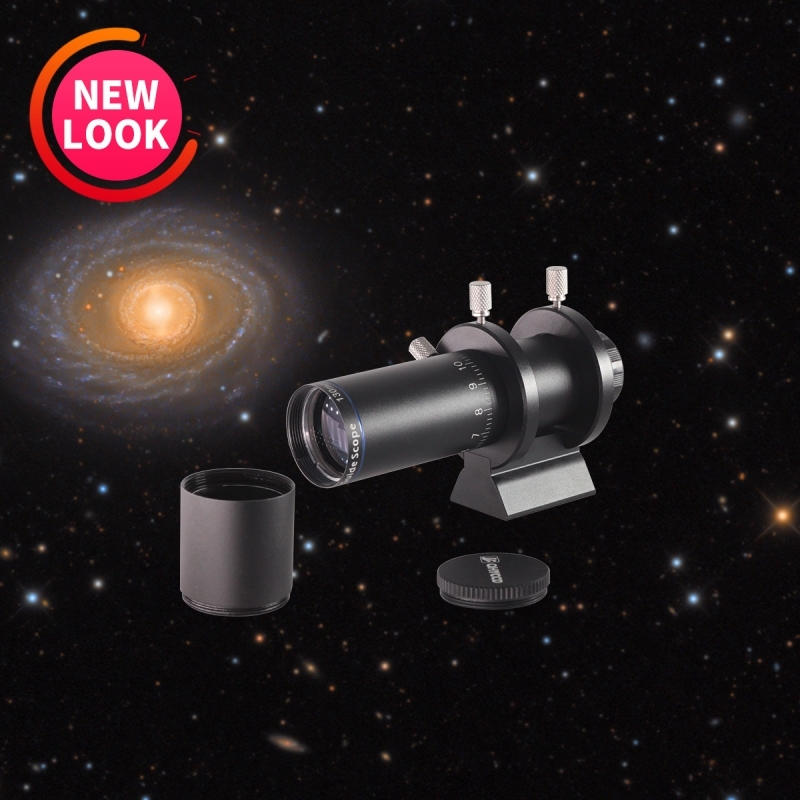

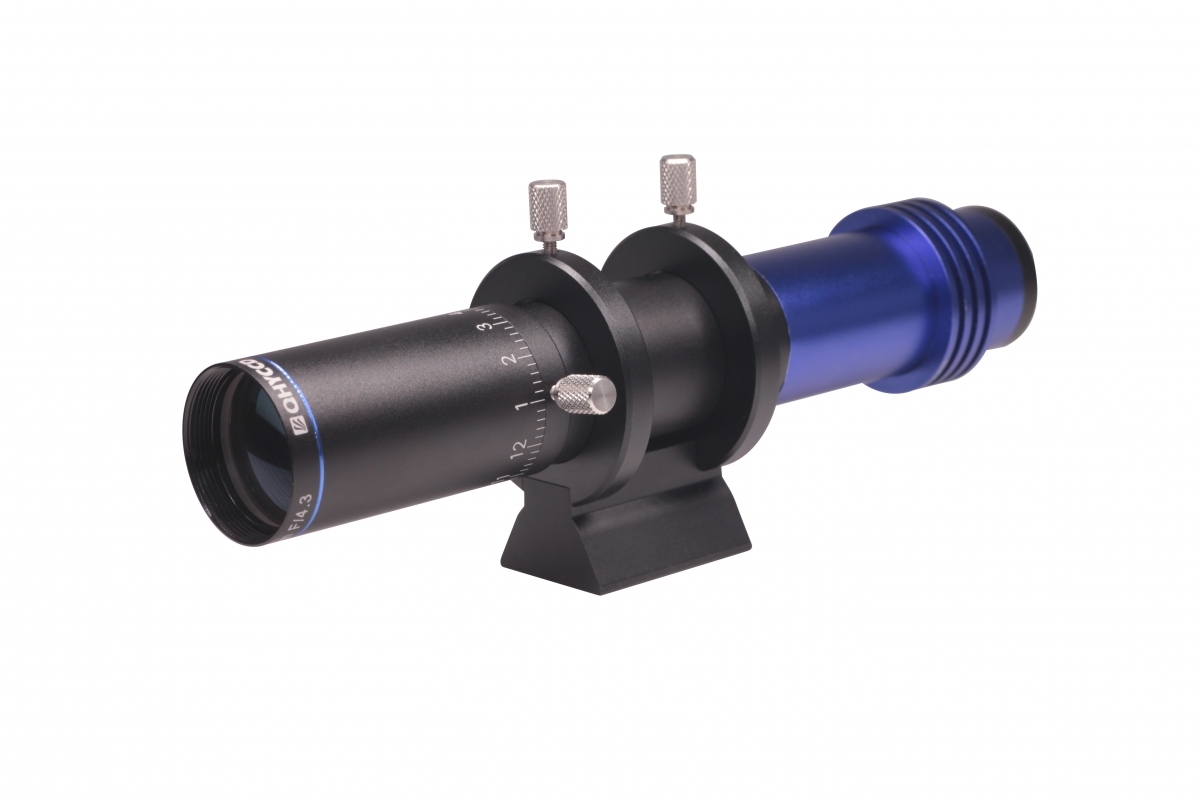

QHYCCD’s Mini GuideScope is based on just this idea. The Mini GuideScope is a 30mm f/4.3 (130mm FL) ultra-small telescope. It has no complex focal adjust system. Just rotate the front of the OTA and it provides fine focal adjustment. Once focus is achieved, the tube can be locked into position and there is not need to focus again unless the system is moved.
The Mini GuideScope provides pin-point star images as sharp as any lens in the industry.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
| Model | miniGuideScope |
| Diameter | 30mm |
| Focal Length | 130mm |
| Aperture | 1:4.3 |
| Object Lens Type | Doublet |
| Focus System | Front Side Focuser |
| Focus Locker | Yes |
| Camera Interface | C/CS Mount |
| Compatible Cameras | QHY5II and QHY5III series |
| Anti-Scatter Light Matt Paint | Yes, Internal painted |
| Weight (OTA only) | 111g |
| Telescope Connector | Optional Standard ViewFinder Scope Connector with Tripod Screw Thread |
| Diameter of the OAT | 31.6mm |
| Focus Adjustable Range | Inf. to 1.5 meter |
