Pegasus Astro NYX-88
Starting Price: $1,950.00
Price as Configured: $1,950.00
Price as Configured: $1,950.00
Brand: Pegasus Astro / SKU: PEG-NYX-88

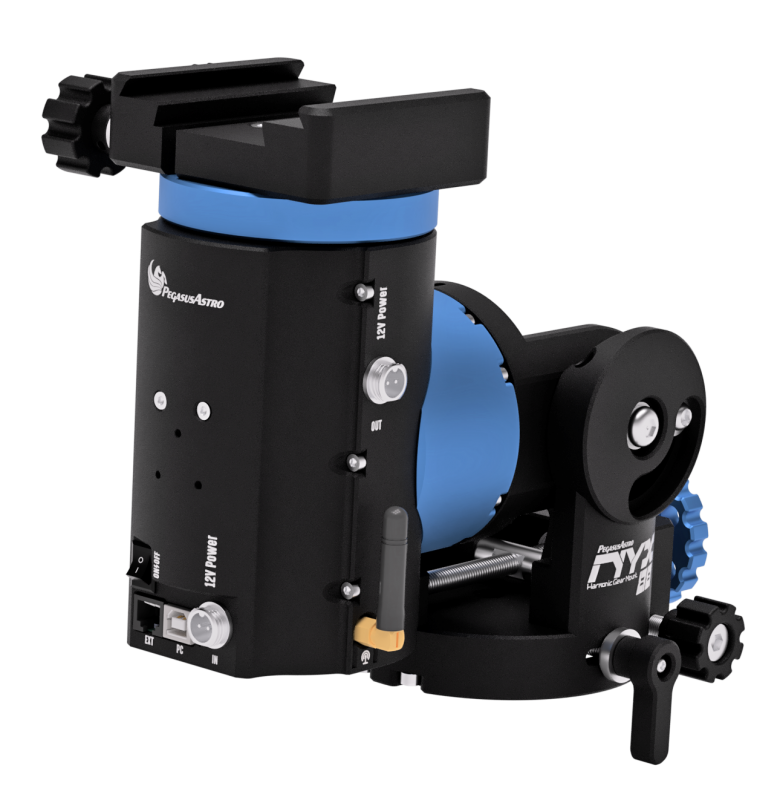

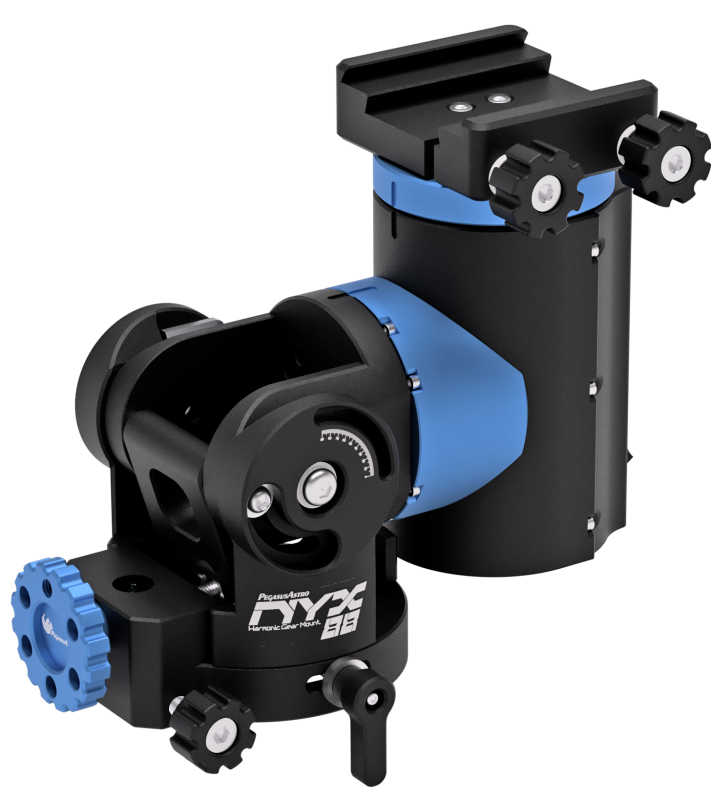

We’re excited to unveil the latest addition to the Pegasus Astro NYX harmonic mount series: the NYX-88, a compact mount designed to complement its larger sibling, the NYX-101.
NOW ACCEPTING PRE-ORDERS.
Delivery expected in late 2024.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Boasting an impressive payload capacity of up to 14kg (mount weights 5Kg) without the need for counterweights, the NYX-88 is engineered for precision and performance in astrophotography and observational astronomy.
Key features include:
- Harmonic gears on both axes for smooth and backlash free tracking.
- Power-off brake on the RA axis ensures stability and safety during operation.

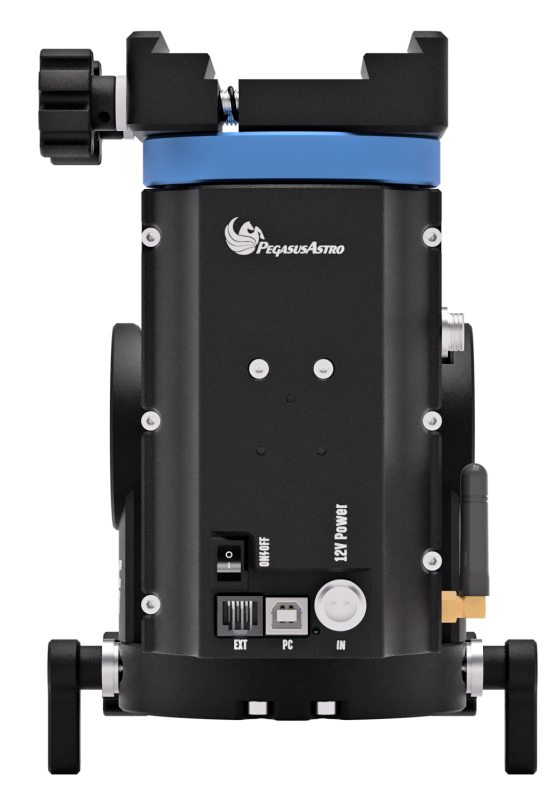

- Built-in wireless and USB control for seamless connectivity and convenient operation.
- Enhanced signal reception with an external WiFi antenna, ensuring reliable communication.
- DC 12 Volts operation for flexibility in power supply options.
- Secure power sockets to safeguard against power interruptions.
- Universal saddle plate for compatibility with a wide range of telescope setups.
- Integrated ST-4 autoguide port for precise guiding capabilities.
Moreover, the NYX-88 is designed to seamlessly integrate with popular software platforms, supporting ASCOM, Alpaca, ASIAIR, Sky Safari, and INDI framework straight out of the box.
Additional Key Features
DC 12 Volts Battery Operation
The NYX-88 mount requires only 12V for smooth operation, allowing you to use a standard 12V battery without additional converters. The mount consumes less than 0.6 amps during tracking and up to 2 amps during slewing.
Universal Saddle Plate
The NYX-88 mount includes a low-profile and rigid universal saddle that accepts Vixen and Losmandy 3-inch dovetails.
Integrated ST-4 Autoguiding Port
An ST-4 port is available, compatible with our dedicated NYX hand controller or an ST-4 guiding camera.
DC Output
An extra DC (GX-12) output on the side of the mount provides up to 8A to your equipment.
Reverse Voltage Polarity Safety
NYX mount has been designed with reverse voltage polarity protection. A saver if you accidentally reverse voltage or battery polarity during the night.
Optional Counterweight support
The mount does not require counterweights for up to 14Kg of payloads. However, if you need to install counterweights for heavier payloads, there is a compatible M12 threaded shaft hole at the end of the DEC axis.
Auto Home Slew
The automatic home position feature is implemented with encoders on both axes.
ASCOM & INDI
The mount fully supports ASCOM 7, ASCOM Alpaca and INDI framework. Sky-Safari is also supported allowing you to control the mount through your mobile device.
LX200 Compatibility
LX200 protocol is fully compatible with the NYX-88 mount. Any device that support LX200 such as Sky-Safari works out of the box with the mount.
Mobile Control
A mobile application for IOS and Android platforms allows you to control both axes of the mount, slew to installed catalogs of thousands of night sky targets and do a rough polar alignment through an electronic polar assistant.
Safety limits on RA axis
Safety limit encoders on RA Axis prevent internal cable snag or collision with the tripod.
Firmware Upgrade
An easy firmware upgrade process allows you to stay up to date with bug fixes and the latest features of the mount.
