Pegasus Astro Motor Focus Kit v.2 (Universal)

Pegasus Astro Motor Focus Kit v.2 (Universal)

Starting Price: $144.00
Price as Configured: $144.00
Brand: Pegasus Astro / SKU: PEG-MFKv2-UNIV

Focus your telescope accurately and quickly using Pegasus Astro’s powerful Motor Focus Kit. This high resolution blue anodized gearbox has a 0.06 degree step size and can easily lift more than 6 kg (per cm) due to its high torque.  The RJ45 socket converts to the compatible Robofocus pinout.

Note: Don't forget to add a stepper controller to drive the motor. Check out the Dual Motor Focus Controller, Ultimate Powerbox, or the External Motor Controller below.



Recommended Add-ons and Accessories
Product Price Quantity
PEG-UPBV2 - Pegasus Astro Ultimate Powerbox v.2 (UPBv.2)
PEG-UPBV2 - Pegasus Astro Ultimate Powerbox v.2 (UPBv.2)
About This Product

This product has been discontinued by the manufacturer and will be replaced by a new product in the next couple of months.

The Ultimate Powerbox v2 (UPBv2 for short) is the successor of Pegasus Astro's Ultimate Powerbox, bringing in many new features. A USB3.1 Hub was added so you can switch ON/OFF each USB port...more power outputs... more dew heaters... a new stepper controller that can drive any stepper motor in the marketplace... expansion ports for future devices that will communicate with the UPBv2 Controller...a new enclosure.

No more carrying multiple power packs; no more mess of power and data cables. Pegasus Astro's Ultimate Powerbox v2 is a sophisticated power control unit--the “Ultimate” solution.

No cables disturb the movements of the mount and the instrument. Only the main power cord and one USB data cord is attached to the Ultimate Powerbox--all the other cables branch off from that.

If you own a remote observatory or do advanced imaging, the Ultimate Powerbox is a must-have device.


$0.00 each
PEG-XMOTORCTRL - Pegasus Astro External Motor Controller
PEG-XMOTORCTRL - Pegasus Astro External Motor Controller
About This Product

The Pegasus Astro External Motor Controller is a great expansion accessory for the “Ultimate Powerbox v2” and the Pocket Powerbox Advance. The external motor controller is designed to expand the focus capabilities of the "Ultimate Powerbox v2” (supports a 2nd focus controller) and adds focus functionality to the “Pocket Powerbox Advance." The device does not require a USB cable and can be attached directly to the EXT port of the Powerboxes. It can drive a large bipolar or unipolar stepper motor (up to 2Amps per coil) with high precision.

$168.00 each
PEG-DMFC - Pegasus Astro Dual Motor Focus Controller
PEG-DMFC - Pegasus Astro Dual Motor Focus Controller
About This Product

The Pegasus Astro Dual Motor Focus Controller allows you to enjoy fast, reliable, and accurate telescope focusing with a stepper or DC motor. The Dual Motor Focus is designed from decades of experience in astrophotography and telescope focusing and assists in providing the focusing precision necessary to keep up with current technologies. Fast optics and modern camera devices require automatic focusing in every small period of time since temperature can affect focal length and modify the optimal focus position. The Pegasus Dual Motor Focus Controller meets these requirements.

$204.00 each
QTY:
Price as Configured: $144.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

Specifications

  • Step Angle (Deg): 7.5 / 120 = 0.0625
  • Gear Ratio: 1:120
  • Phases: 4 (Unipolar Motor)
  • Voltage: 12V DC
  • Current (A): 0.27A
  • Pull-in Rate (PPS): 400
  • Pull-in Torque (N.cm): 60 (100pps)

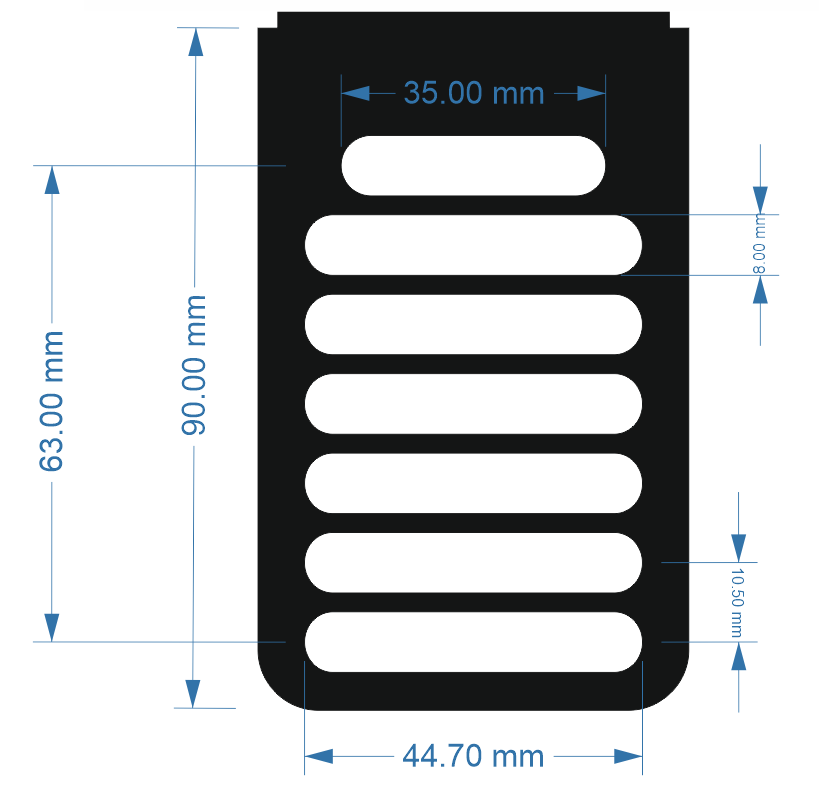

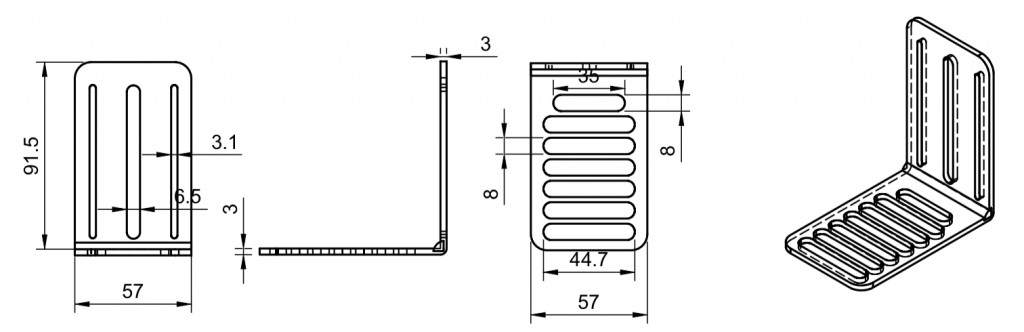

  • Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler total 350g
