Pegasus Astro Indigo Filter Wheel, 7 Positions

Pegasus Astro Indigo Filter Wheel, 7 Positions

Starting Price: $459.00
Price as Configured: $459.00
Brand: Pegasus Astro / SKU: PEG-INDIGOFW7-2

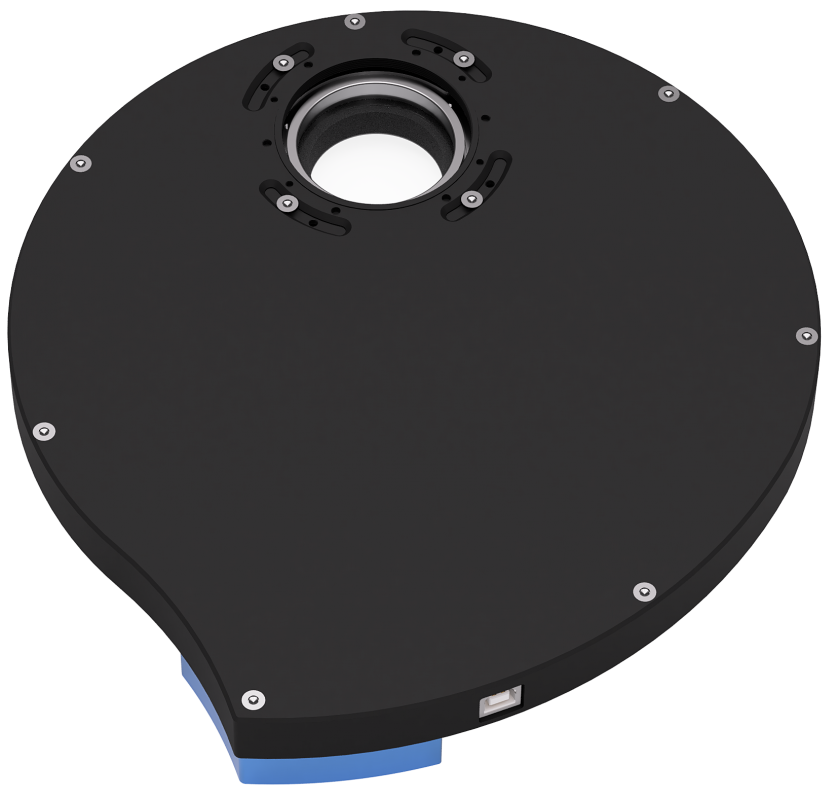

Pegasus Astro's new high quality Indigo FIlter Wheel has a 7-position carousel and can house 2-inch mounted or 50mm unmounted filters.
Recommended Add-ons and Accessories
Product Price Quantity
PEG-INDIGOAG - Pegasus Astro Indigo Off Axis Guider
PEG-INDIGOAG - Pegasus Astro Indigo Off Axis Guider
About This Product

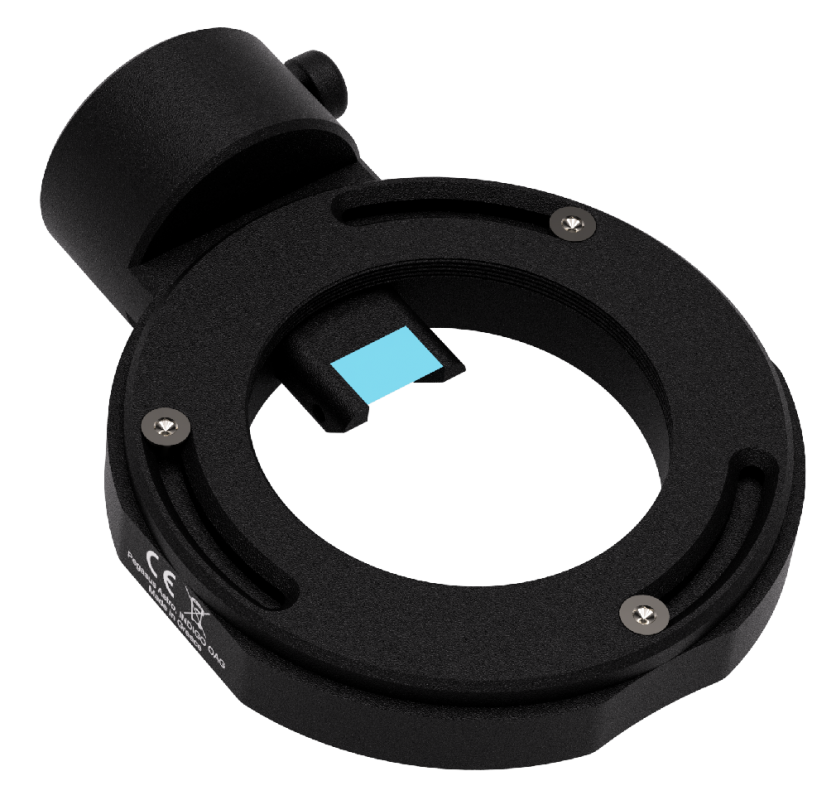

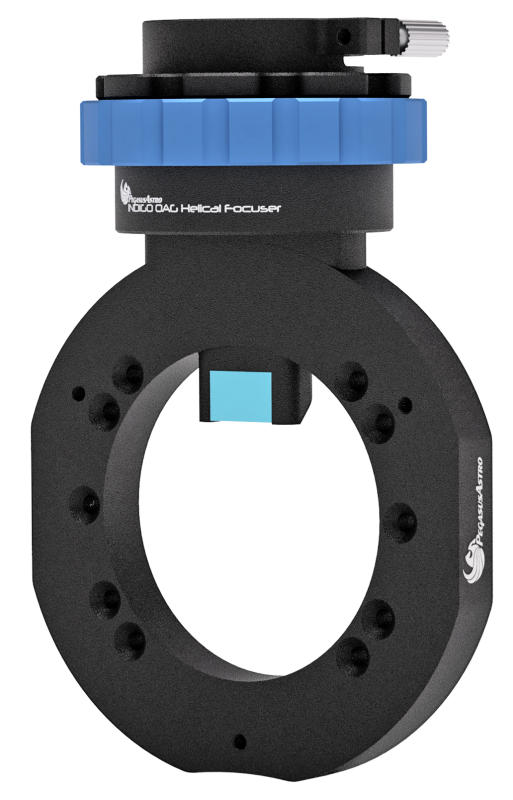

The Indigo Off Axis Guider is Pegasus Astro's thin and solid design OAG which can easily paired with the Indigo Filter Wheel. The OAG supports through holes (M2 and M3) in its body for direct connection with latest CMOS cameras and other Filter Wheels.

The main advantage having an OAG is that it uses the same optical path as your main imaging camera. This avoids any issue with differential flexure that can occur when using a separate guidescope on top of your main telescope.
$192.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
PEG-INDIGOAG - Pegasus Astro Indigo Off Axis Guider
PEG-INDIGOAG - Pegasus Astro Indigo Off Axis Guider
$192.00
Qty:
View Details
« Back to All Add-ons
PEG-INDIGOAG - Pegasus Astro Indigo Off Axis Guider
About This Product
The Indigo Off Axis Guider is Pegasus Astro's thin and solid design OAG which can easily paired with the Indigo Filter Wheel. The OAG supports through holes (M2 and M3) in its body for direct connection with latest CMOS cameras and other Filter Wheels.

The main advantage having an OAG is that it uses the same optical path as your main imaging camera. This avoids any issue with differential flexure that can occur when using a separate guidescope on top of your main telescope.
PEG-ADAPT-M66F-M54M - Pegasus Astro M66 Female to M54 Male Adapter (for Esprit 100)
PEG-ADAPT-M66F-M54M - Pegasus Astro M66 Female to M54 Male Adapter (for Esprit 100)
$42.00
Qty:
View Details
« Back to All Add-ons
PEG-ADAPT-M66F-M54M - Pegasus Astro M66 Female to M54 Male Adapter (for Esprit 100)
About This Product
Thread: Pitch M66/1.0mm, M54/0.75mm
Connects SW Esprit 100 Flattener with any M54 threaded accessories
SW Esprit 100 + PEG-ADAPT-M66F-M54M + Pegasus Astro Indigo OAG + Pegasus Astro Indigo Filter Wheel + QHY268M Camera = 63mm optimal backfocus distance
QTY:
Price as Configured: $459.00
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
One cable operation
The Indigo Filter Wheel requires a USB2 (TypeB) cable only. This simplifies the connectivity since it does not require a separate power supply when used with USB control.

Accurate FIlter Selection

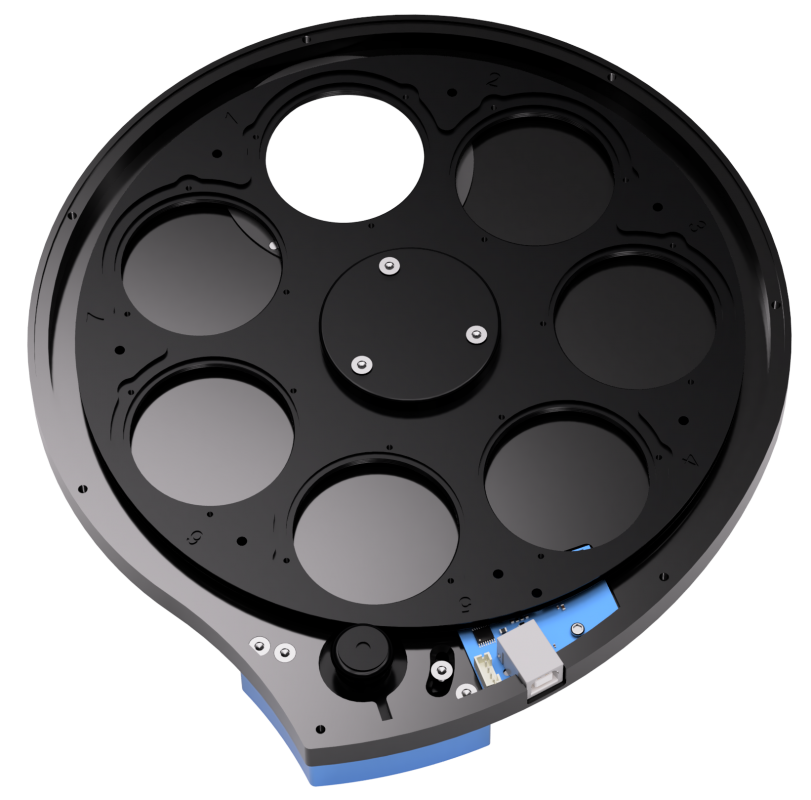

Indigo's carousel has seven (7) slots and accepts 2-inch mounted or 50mm unmounted filters. The Indigo rotates in a clock or counter clockwise direction for filter selection. A combination of a direct drive stepper motor and optical encoders ensure that your filter selection is precise, dead accurate on every filter location. The Indigo takes the shortest path when moving from one filter to another.

Thin Design

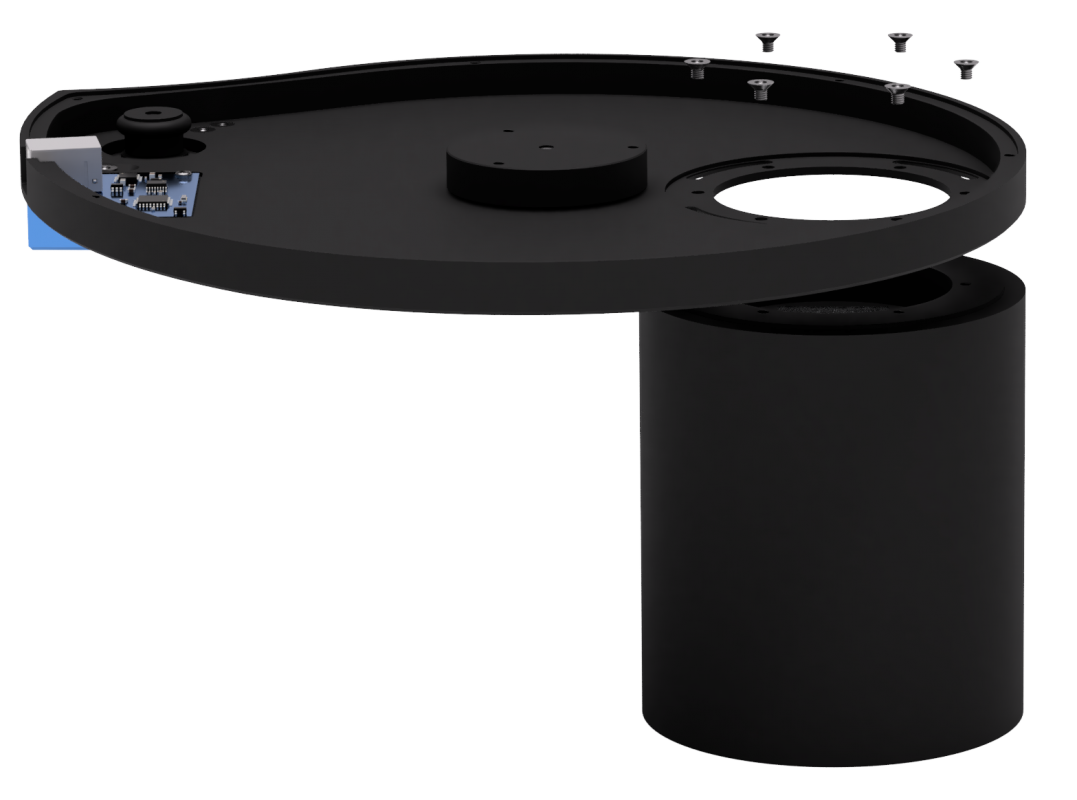

The body of the Indigo filter wheel is aluminium CNC milled. High quality aluminium alloy allowed Pegasus Astro to design the filter wheel as thin as possible (19.0mm, 19.6mm with adapters installed on both sides).

Orientation on both adapters

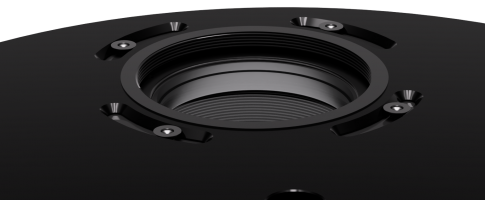

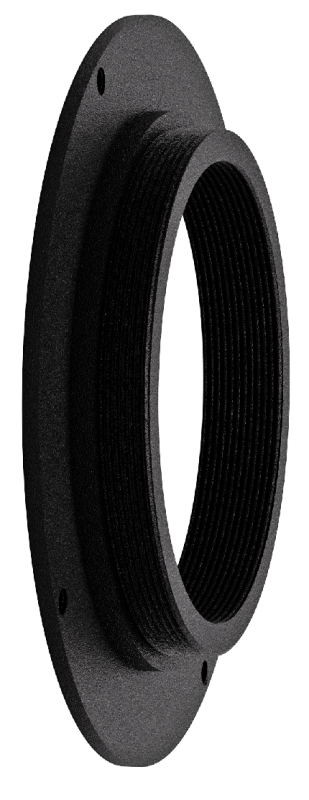

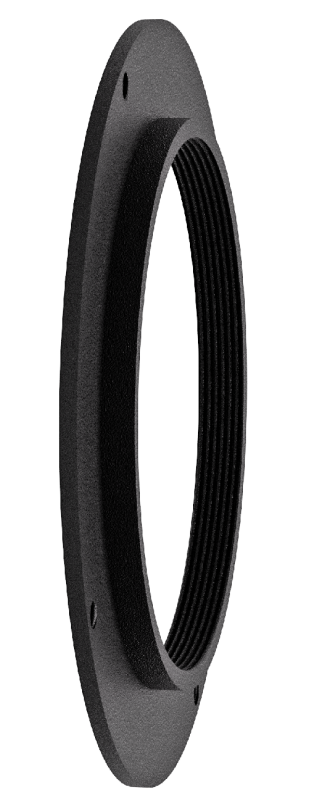

Both sides of the Indigo filter wheel have M54 openings. The screw slide adapter (image below) allows you to properly allign the orientation of your camera or telescope side. Just loosen the screws and rotate the adapter to the desired orientation.




Camera Connection

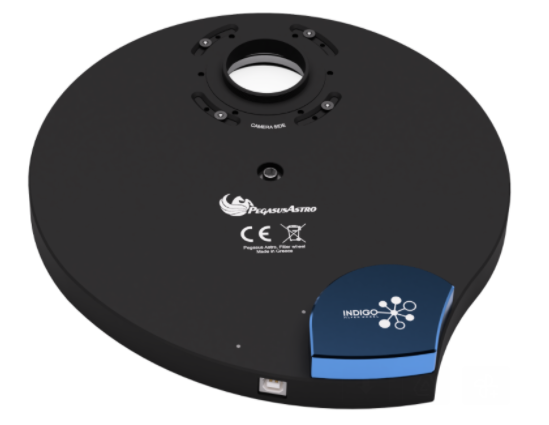

The 6 screw holes on the camera side allows direct connection with astronomical cameras that follow the same 6 x hole pattern (62mm diameter pattern) -- a convenient feature allowing you to reduce the total backfocus instead of placing adapters.



Mechanical Design
