Optec ThirdLynx DirectSync ACFX

Optec ThirdLynx DirectSync ACFX

Starting Price: $655.00
Price as Configured: $655.00
Brand: Optec / SKU: OP-19975

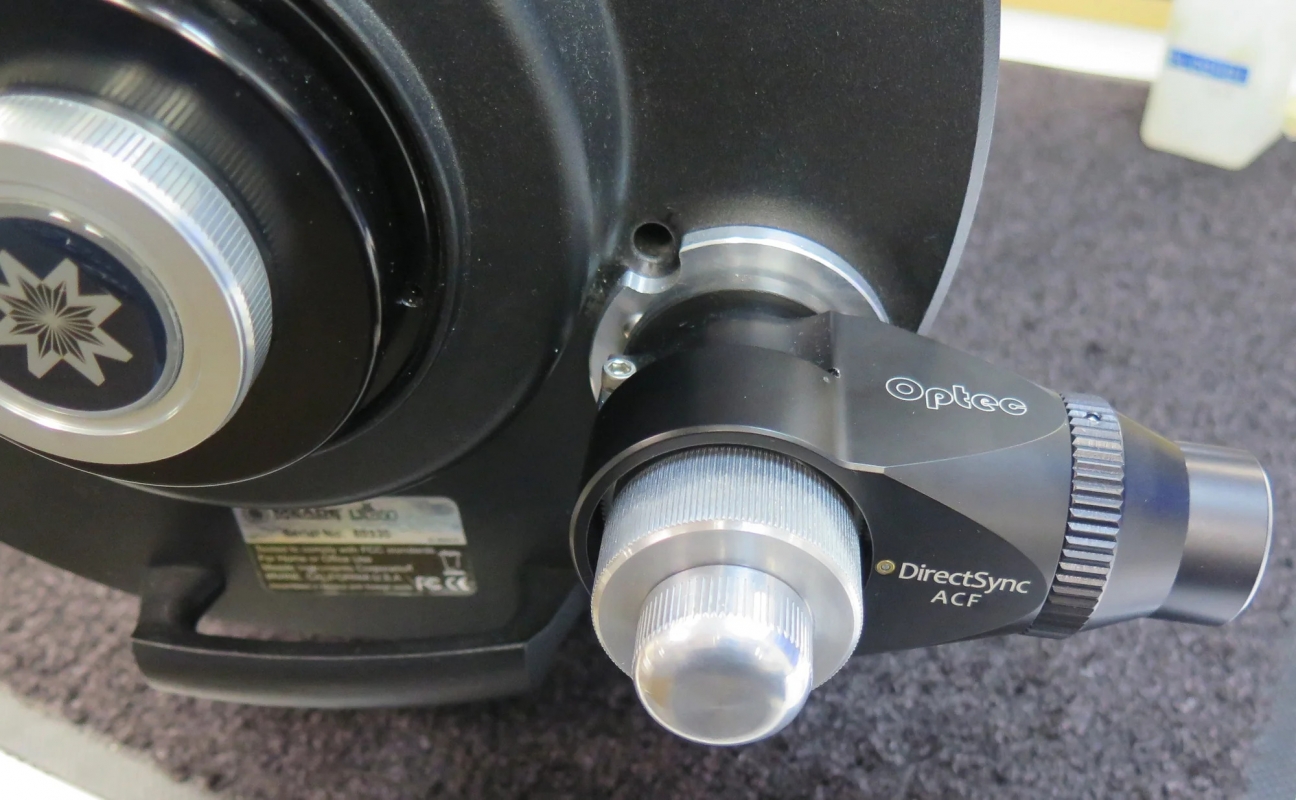

Optec's DirectSync ACFX motor features Optec's ThirdLynx control circuit. ACFX fits the native "reverse Crayford" focuser of the Meade 8", 10", 12", 14" and 16" ACF f/8 telescope line. DirectSync ACFX features the same Best-In-Class clutch mechanism of the original DirectSync motors. However, all the control electronics are built into the focus motor. No external controller is required. USB connectivity and fully compatible with all existing FocusLynx software.

Compatible with: Meade f/8 ACF native focuser.

Recommended Add-ons and Accessories
Product Price Quantity
OP-17070 - Optec USB TO 12V DC Power Converter Cable
OP-17070 - Optec USB TO 12V DC Power Converter Cable
About This Product
Recommended for use with 1A or higher USB charger ports to power ThirdLynx focus motors.

USB to 12VDC power adapter cable. Special cable converts USB 5-volt output to 12VDC for use with low-power devices such as the ThirdLynx focus motors. 2.5 x 5.5mm power plug, 3-ft. (1m) length. RECOMMENDED FOR USE WITH USB 3.1 OR CHARGING PORTS ONLY.

  •  USB input: 5V 1A (5W) male type A plug,
  • 12VDC output: 2.5 x 5.5mm plug- center pin positive,
  • Length: 3-ft. (1m)
$25.00 each
QTY:
Price as Configured: $655.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.35" (85mm)
  • Weight: 5.2 oz (150 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Connectivity: USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA
