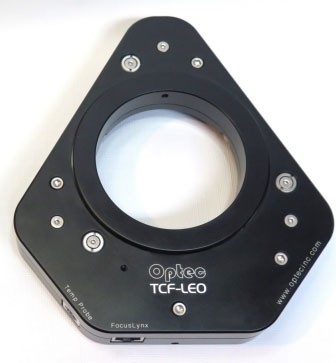

Optec TCF-Leo Low-Profile Focuser
Price as Configured: $1,495.00

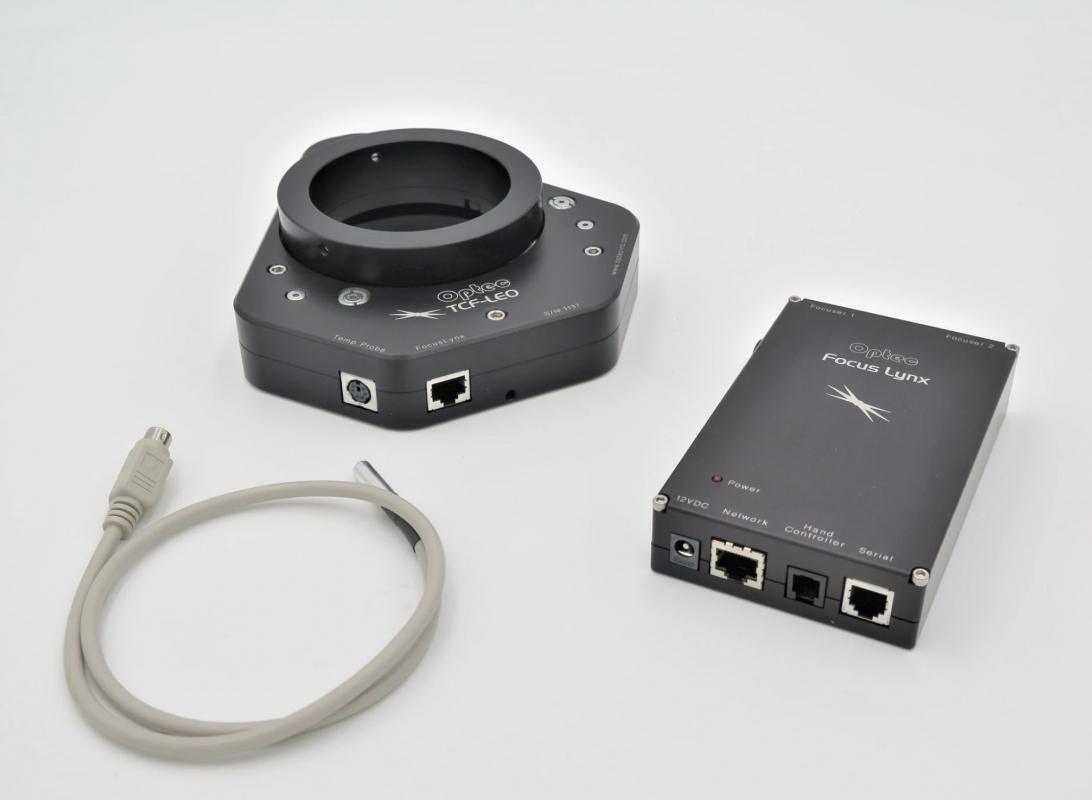

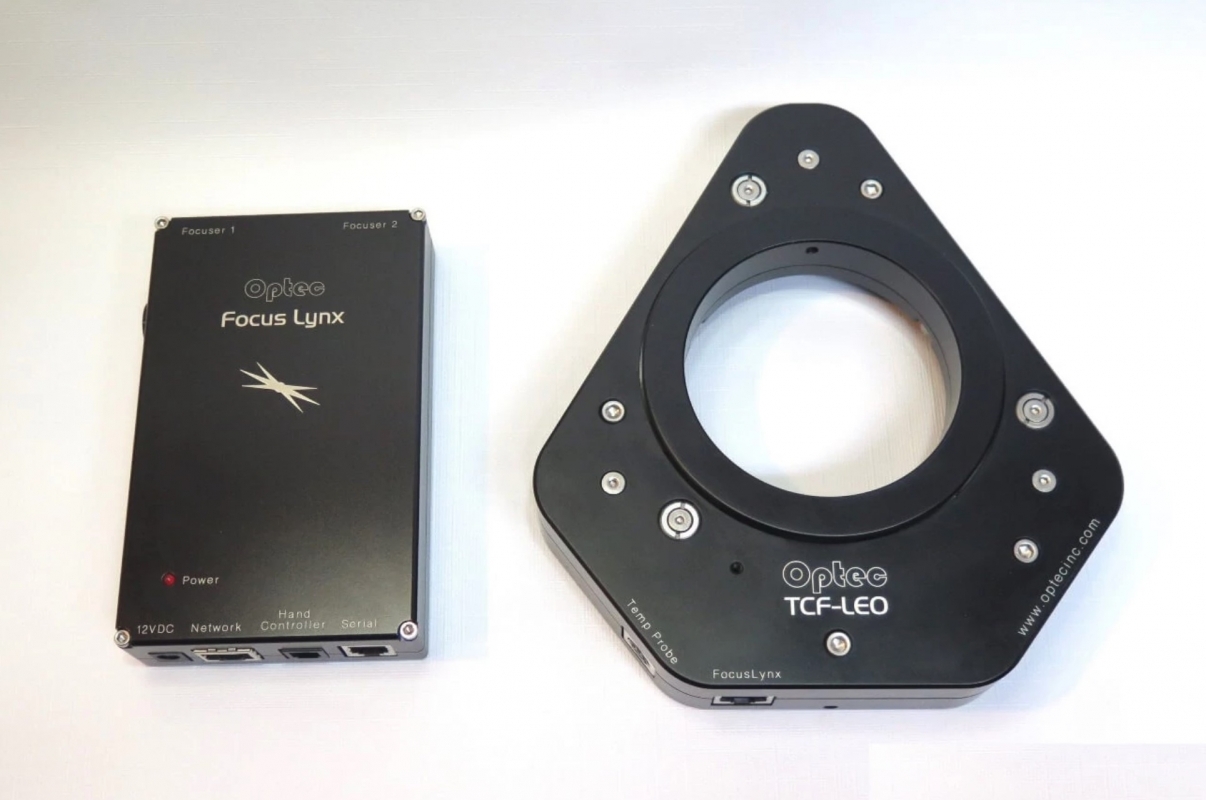

Optec has developed a low profile, yet extremely robust, 3-inch focuser for telescope installations where back-focus is at a premium. With the width of a typical 1-1/4" eyepiece, the TCF-Leo provides a unique focusing solution for the Celestron EdgeHD and other telescopes with limited flange-to-focus distances. The proven FocusLynx control system operates the TCF-Leo and can be extended to provide control for a second focuser and supports the optional 802.11 WiFi and Hand Control accessories.

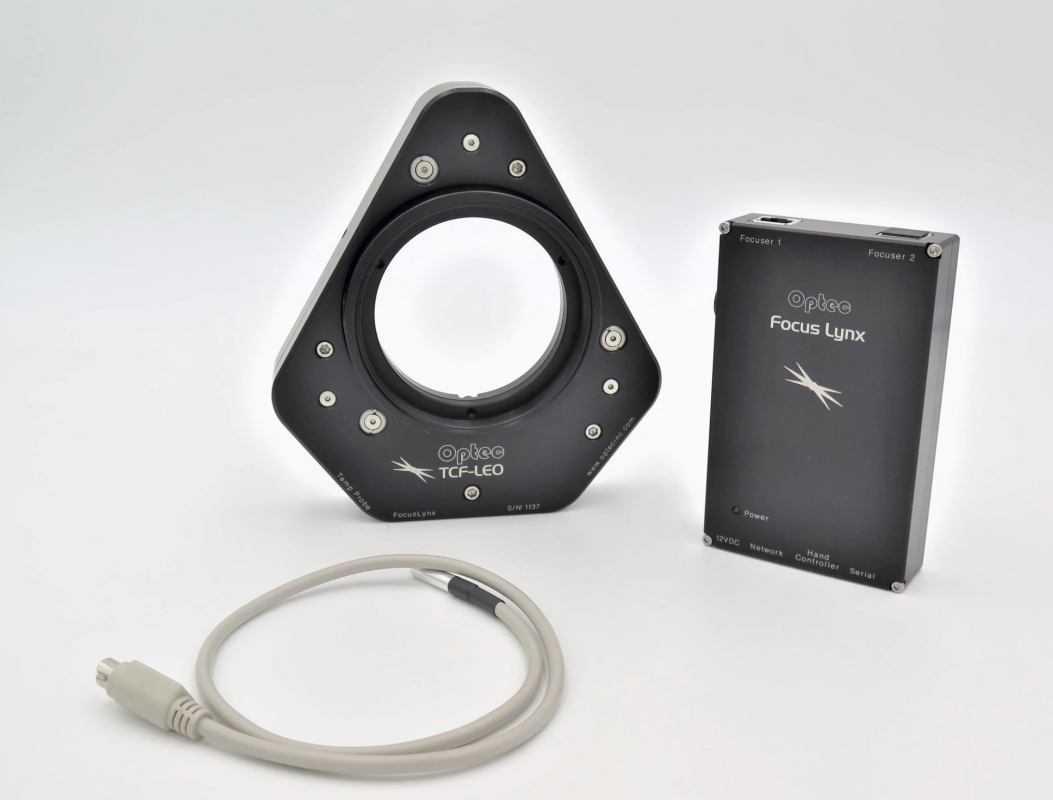

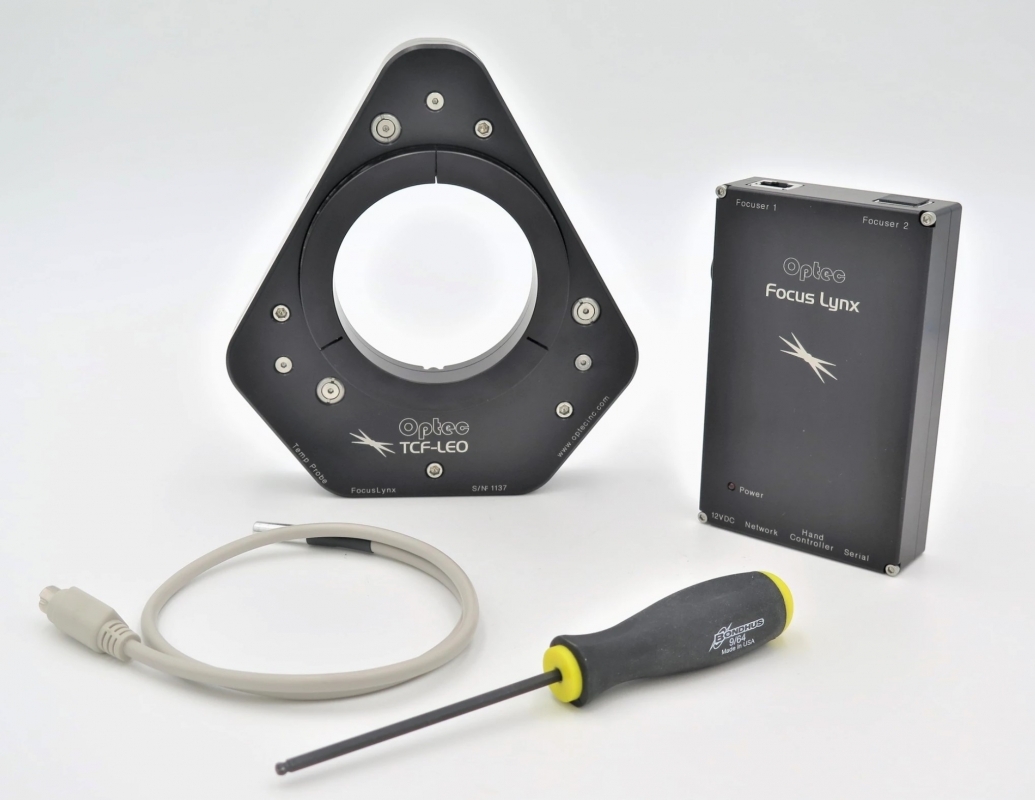

The TCF-Leo supports several draw tube options including the Optec 3000 dovetail, a DSI 3.5" receiver, and a 3-inch split clamp for Wynne Correctors. You can select the option that works best for your system.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.

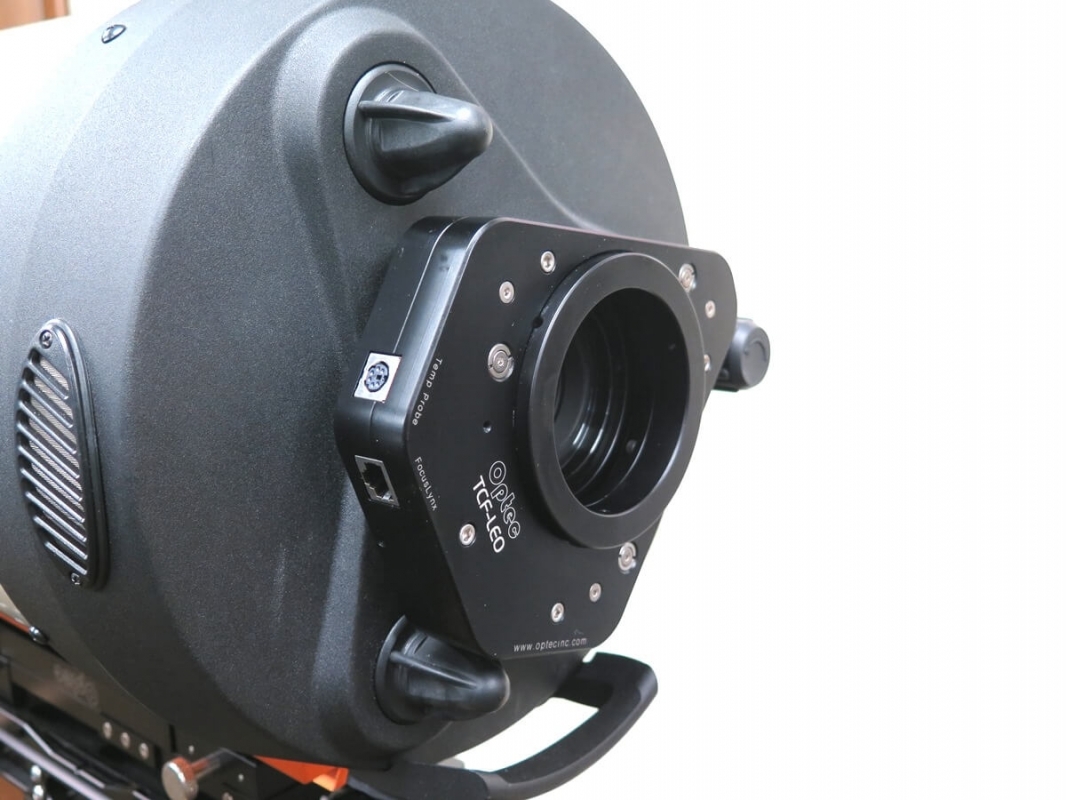

The unique shape of the TCF-Leo is designed to fit neatly between the lock and focus knobs of the Celestron EdgeHD C-11 telescope OTA. With a center-to-edge distance of about 2.2-inches (55mm), the TCF-Leo works exceptionally well with Innovation Foresight's On-Axis Guider, providing clearance for large cameras and filter wheels above either of the flat edges of the TCF-Leo. Additionally, the TCF-Leo's 3600 receiver fits directly on to the large 3-inch port of the Perseus Instrument Selector for ultra-fine focus of a large format camera.
The TCF-Leo supports several draw tube options including the Optec 3000 dovetail, a DSI 3.5" receiver, and a 3-inch split clamp for Wynne Correctors. You can select the option that works best for your system.
