Optec Lepus 062X Telecompressor Focal Reducer Lens

Optec Lepus 062X Telecompressor Focal Reducer Lens

Starting Price: $225.00
Price as Configured: $225.00
Brand: Optec / SKU: OP-19407

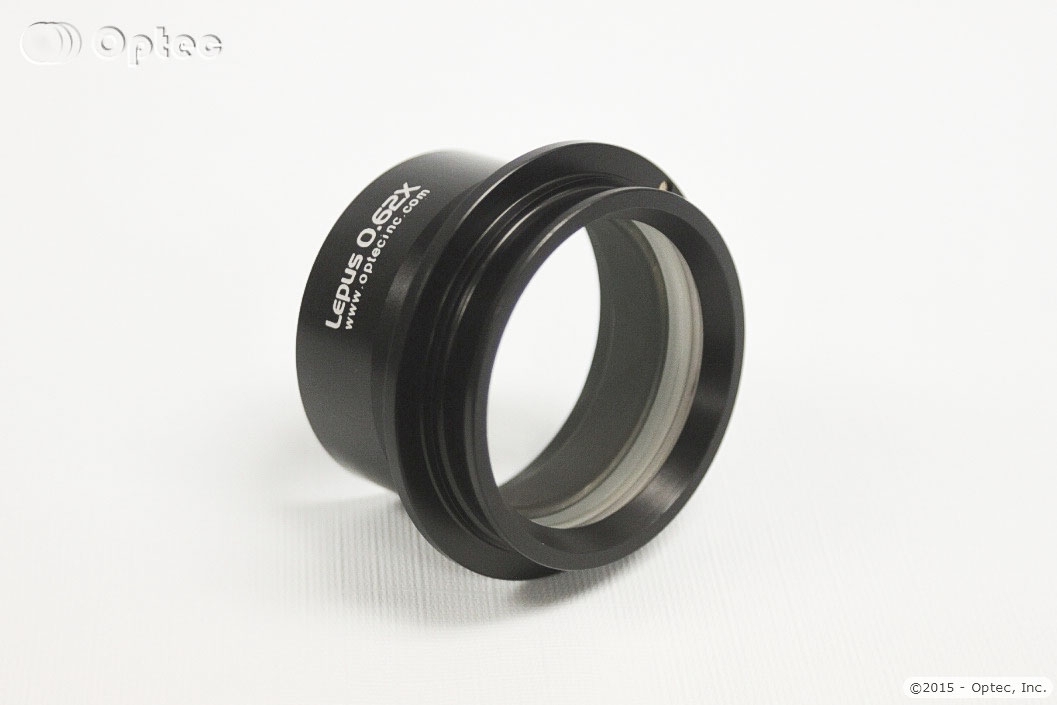

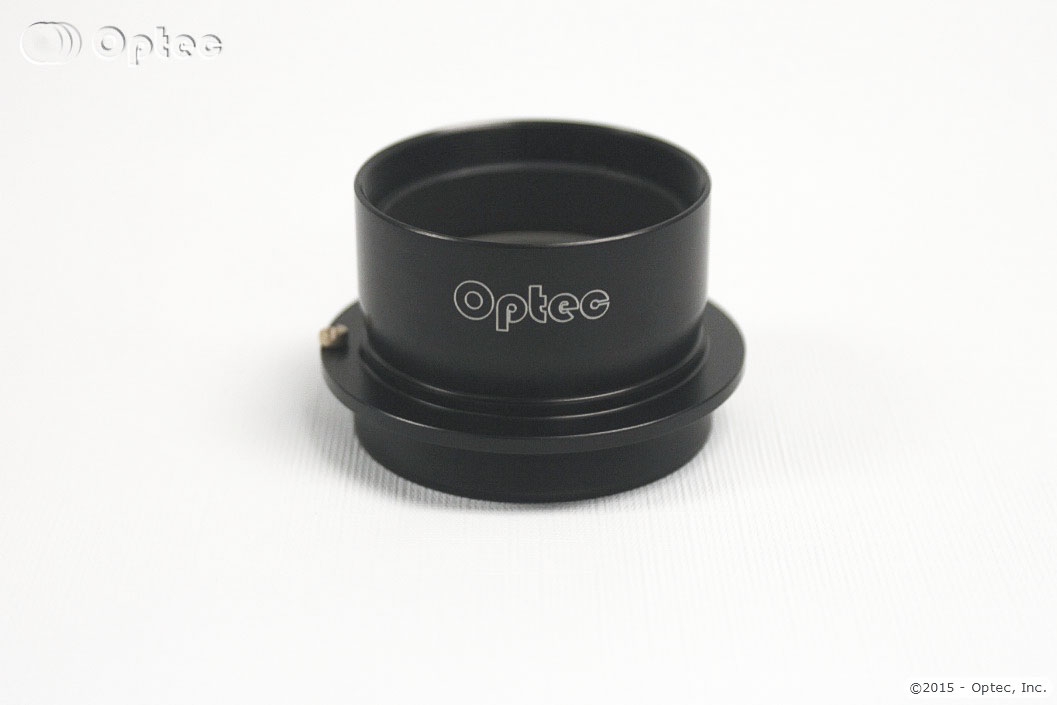

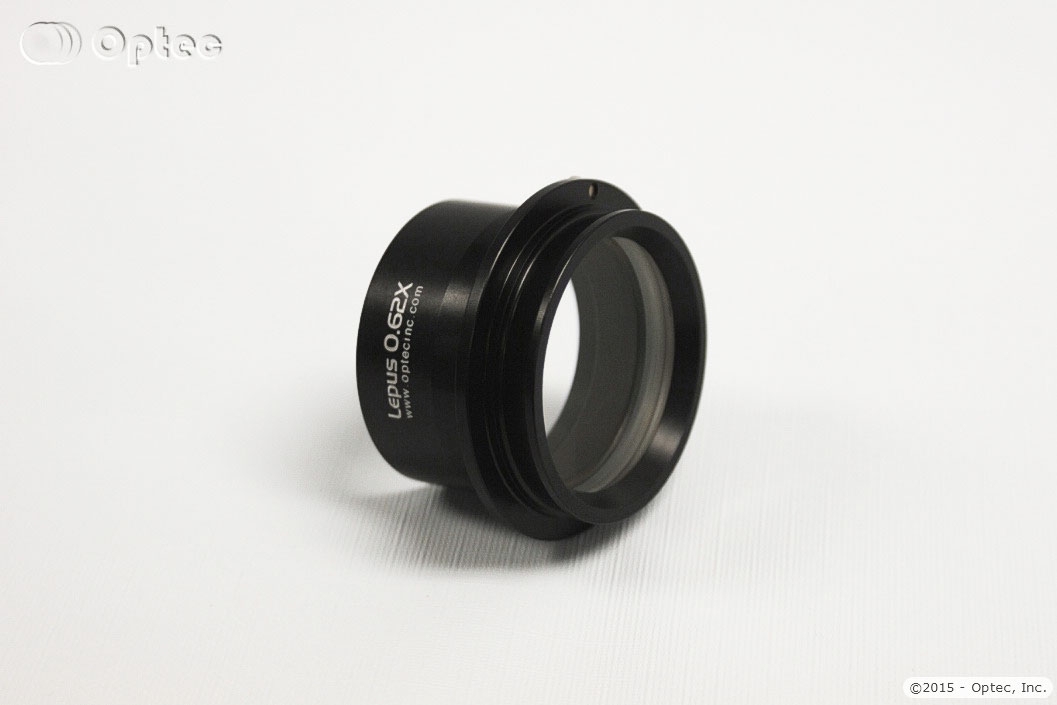

The Standard Edition Lepus 0.62X telecompressor lens is designed for use with any telescope having the TCF-S or other 2-inch focuser in place. Works well with Meade ACF f/10 and f/8 coma-free SCT telescopes. The Lepus 0.62X Standard Edition is housed in a 2-inch barrel-like assembly and will fit into any telescope receiver for standard 2-inch eyepieces.

Recommended Add-ons and Accessories
Product Price Quantity
OP-19390 - Optec VLC T-thread Camera Adapter for NextGEN/Lepus
OP-19390 - Optec VLC T-thread Camera Adapter for NextGEN/Lepus
About This Product
The Optec Variable Length Camera Adapters make setting your camera at the perfect back-focus distance quick and simple. Four different models allow you to connect your camera to the Optec Lepus, NextGEN, or NGC 214 telecompressor with a variable back-focus range of 17mm. Each VLC adapter can be adjusted for any distance between 25mm to 42mm. Refer to the back-focus diagram for your NextGEN, NGC, or Lepus telecompressor lens to determine the optimal back-focus distance for your configuration.
$95.00 each
OP-19393 - Optec VLC STL-Thread Camera Adapter for NextGEN/Lepus
OP-19393 - Optec VLC STL-Thread Camera Adapter for NextGEN/Lepus
About This Product
The Optec Variable Length Camera Adapters make setting your camera at the perfect back-focus distance quick and simple. Four different models allow you to connect your camera to the Optec Lepus, NextGEN, or NGC 214 telecompressor with a variable back-focus range of 17mm. Each VLC adapter can be adjusted for any distance between 25mm to 42mm. Refer to the back-focus diagram for your NextGEN, NGC, or Lepus telecompressor lens to determine the optimal back-focus distance for your configuration.
$95.00 each
QTY:
Price as Configured: $225.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
The camera side connection for the Lepus 0.62X telecompressor is a broad dovetail known as the OPTEC-2100 . The proper back-focus distance to the camera image plane is maintained with Optec's custom camera-specific Lepus mounts available separately below. The OPTEC-2100 interface also allows easy connection to the Pyxis 2" rotator in place of the standard 2-inch nosepiece. When connected to the camera, Lepus will appear as a long 2-inch nosepiece that fits into any 2-inch focuser or eyepiece receiver.

Special DSLR adapters are available from stock for Canon and Nikon cameras which hold and maintain the 100mm on-axis back-focus distance.

The Lepus can be used with other telescope designs but is not parfocal. Therefore, some re-focusing will be required. Performance is not guaranteed with all telescope optical designs and the Lepus is not recommended for use with Ritchey-Chretien telescopes.

Note that the #19407 Lepus - Standard Edition does not include a camera specific mount.

Telescope-Side Compatibility:

TCF 2-inch focuser,
TCF-3 3-inch focuser with 3" to 2" adapter,
Any 2-inch focuser or receiver.

Camera-Side Compatibility:
Lepus camera-specific mount. See this table for common camera adapters,
#19390 and #19393 Variable Length Camera adapters,
Pyxis 2" camera field rotator (between telecompressor and camera),
Any OPTEC-2100 receiver.
