Optec Gemini Hand Control
Starting Price: $225.00
Price as Configured: $225.00
Price as Configured: $225.00
Brand: Optec / SKU: OP-19752

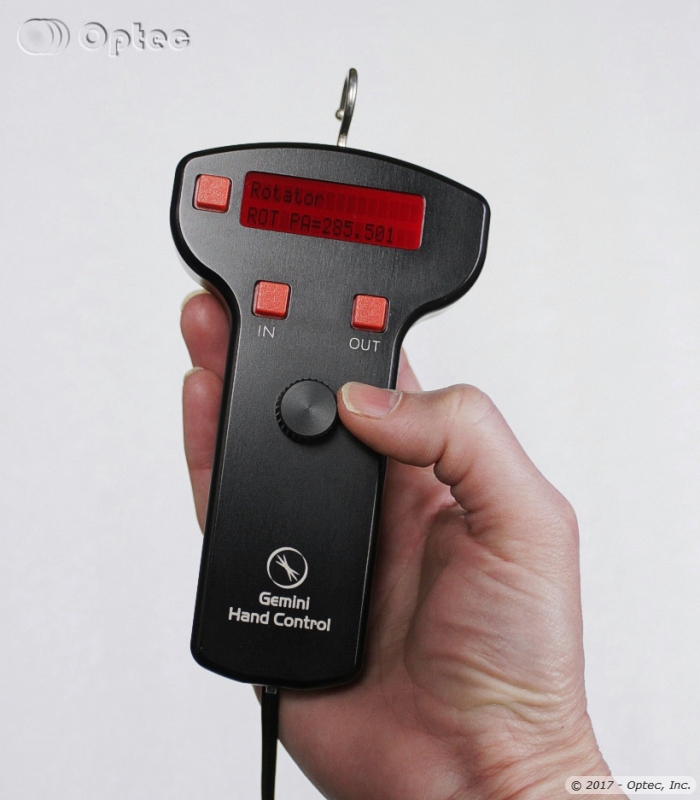

The #19752 Gemini Hand Control provides an easy, vibration-free method of focusing the telescope when using the Gemini Focusing Rotator. Featuring IN and OUT buttons, a 2-line display, and a rotary Fine Focus Knob, this Hand Control is a "must-have" option for any Gemini system where the operator may be present at the telescope.
The Gemini Hand Control includes an electronic Fine Focus Knob for greater control and tactile feedback while using eyepieces at the telescope. An embedded rotary encoder switch allows one-hand fine focus control while using an eyepiece. No need to move your eye away from the eyepiece - with this improvement the Gemini hand control provides simple, intuitive and precise control of the focus motor.
The Gemini Hand Control plugs into the Hand Controller port on the bottom of the Gemini Control Hub using the included telephone handset cord.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
- Material: 6061 aluminum, anodized black
- Display: 2-line with Position and Temperature
- Buttons: IN, OUT, and MODE buttons
- Focus/Rotation Control: Rotary encoder with 1X, 10X, and 100X speeds
- Communications: SPI to Gemini Hub via MAX232 chip
- Length: 6.3" (160mm)
- Width: 3.2" (81.4mm)
- Thickness: 0.9" (22.7mm)
- Weight: 6.4 oz (180 g)
- Mounting: Stainless Steel hanging hook included
- Connection to Gemini hub: RJ22 plug labeled "Hand Controller"
- Recommended Cable: Telephone Handset Cable (25-ft. and 6-ft. lengths included)
- Firmware: V1.1.0 upgradeable with replacement 28-pin PIC chip
