Optec-4300 to PlaneWave CDK14/17/20/24
Starting Price: $135.00
Price as Configured: $135.00
Price as Configured: $135.00
Brand: Optec / SKU: OP-19842

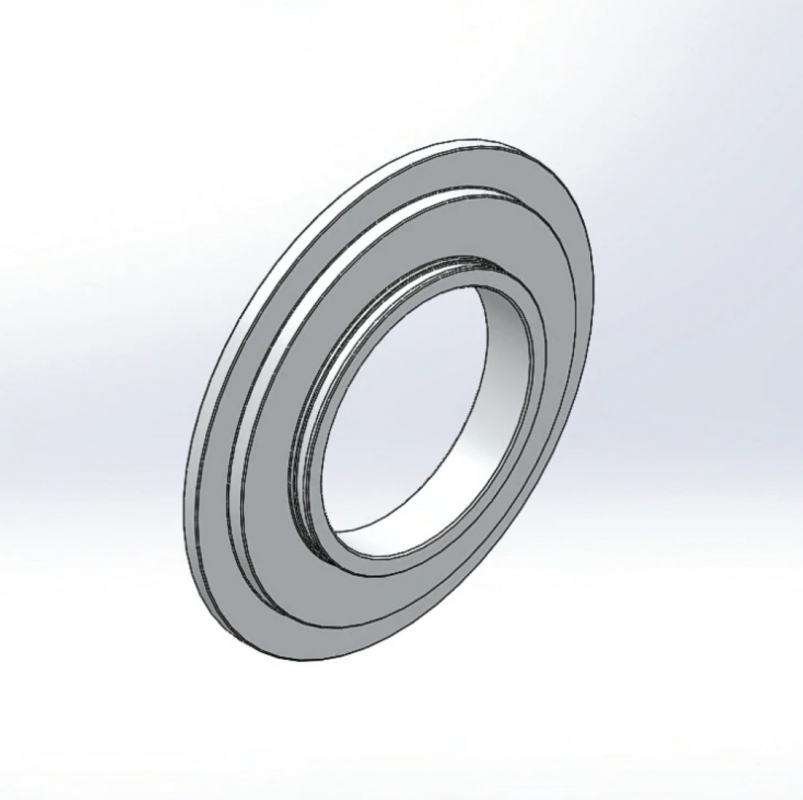

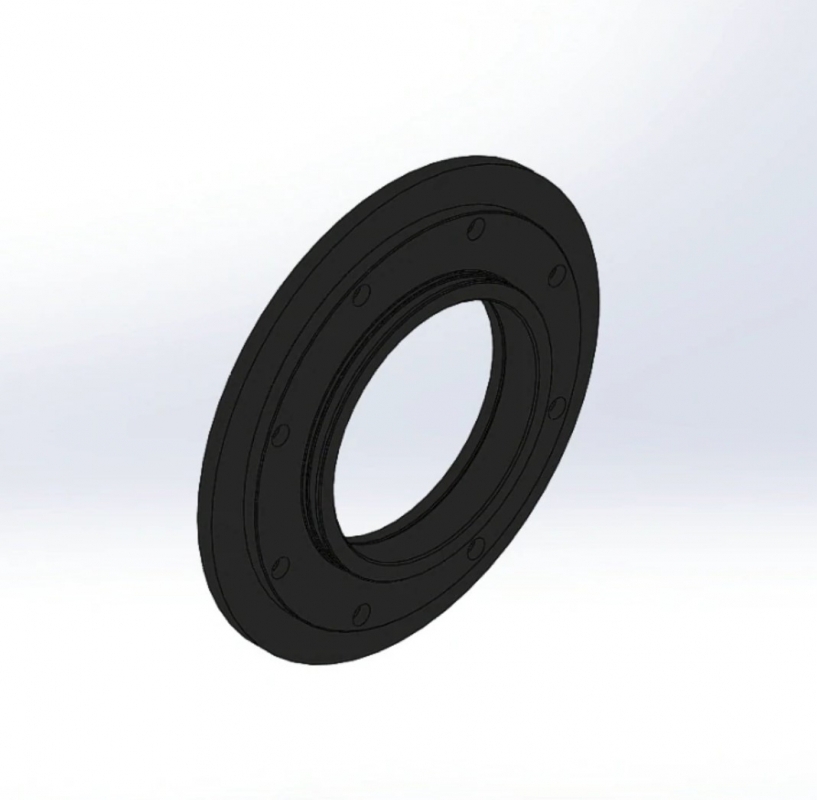

The #19842 adapter fits beneath the Planewave pinch-plate on the 14-inch and large CDK telescopes. This adapter allows attachment of Optec's Gemini Focusing Rotator or TCF-Lynx3 Gen2 3-inch focuser.
Special Note: for the very lowest profile mounting of the Gemini, Optec recommends replacing the socket cap screws holding Planewave's pinch-plate in place with flat-head screws. This requires countersinking the holes on the pinch-plate.
Inside Diameter: 3.74" (95mm)
Outside Diameter: 7.125" (181mm)
Overall Height: 0.81" (20.7mm)
Clear Aperture: 3.74" (95mm)
Weight: 1 lb. 4 oz (555 g)
Back-Focus Usage: 0.5" (12.7mm)
Telescope Side Connection: Planewave Pinch-Plate
Telescope Compatibility:
Planewave 14-inch CDK telescope,
Planewave 17-inch CDK telescope,
Planewave 20-inch CDK telescope,
Planewave 24-inch CDK telescope.
Device Compatibility:
Gemini Focusing Rotator,
TCF-Lynx3 Gen2 focuser (mfg. after Jan. 2018),
Any OPTEC-4300 receiver adapter.
