Optec-3000 Drawtube to 2” Reducer Bushing with Removable Compression Ring
Starting Price: $100.00
Price as Configured: $100.00
Price as Configured: $100.00
Brand: Optec / SKU: OP-17804

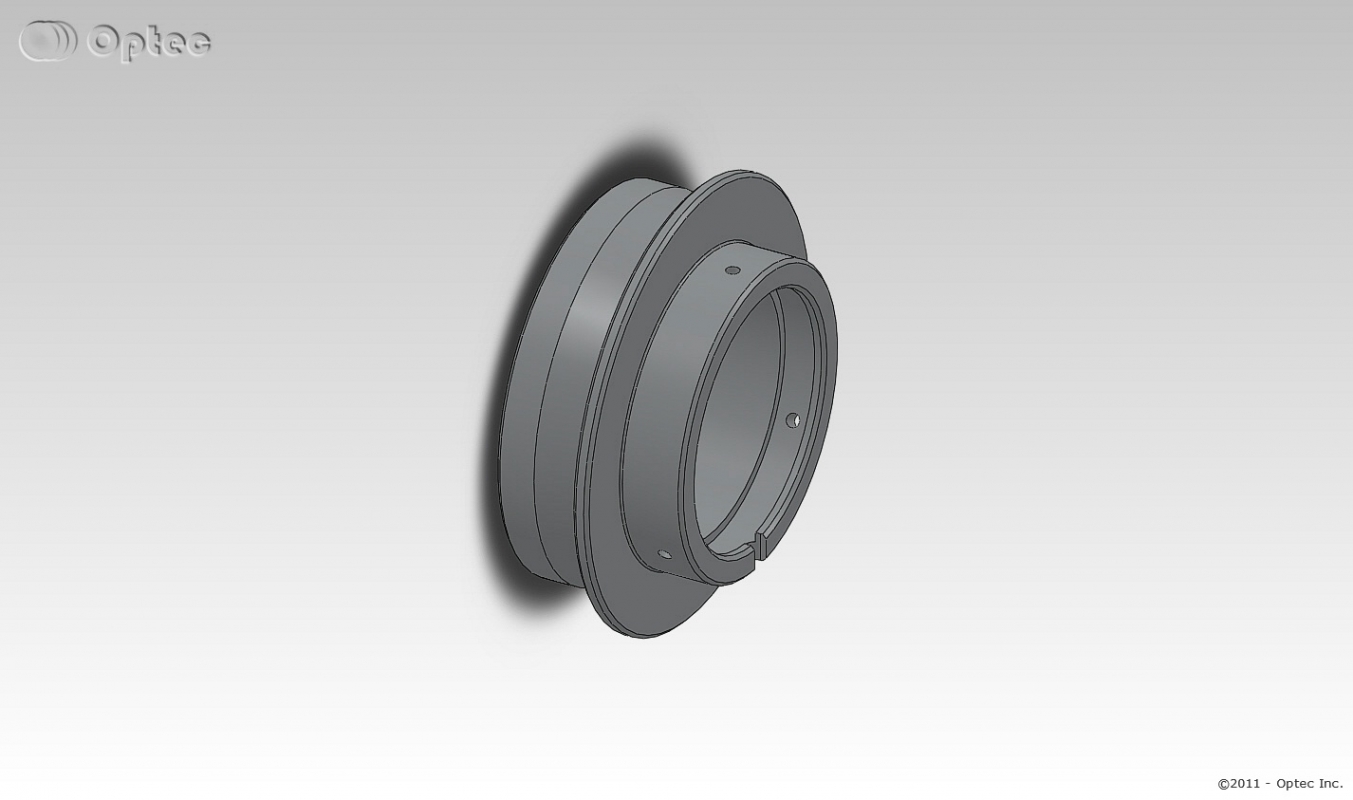

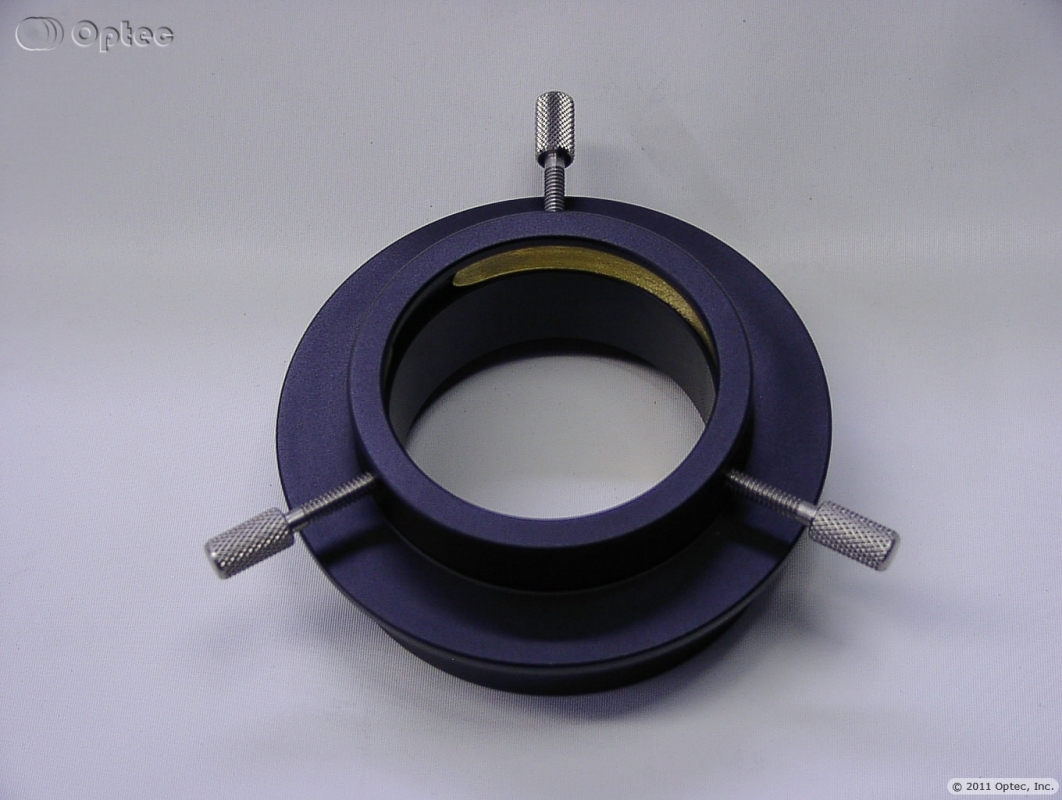

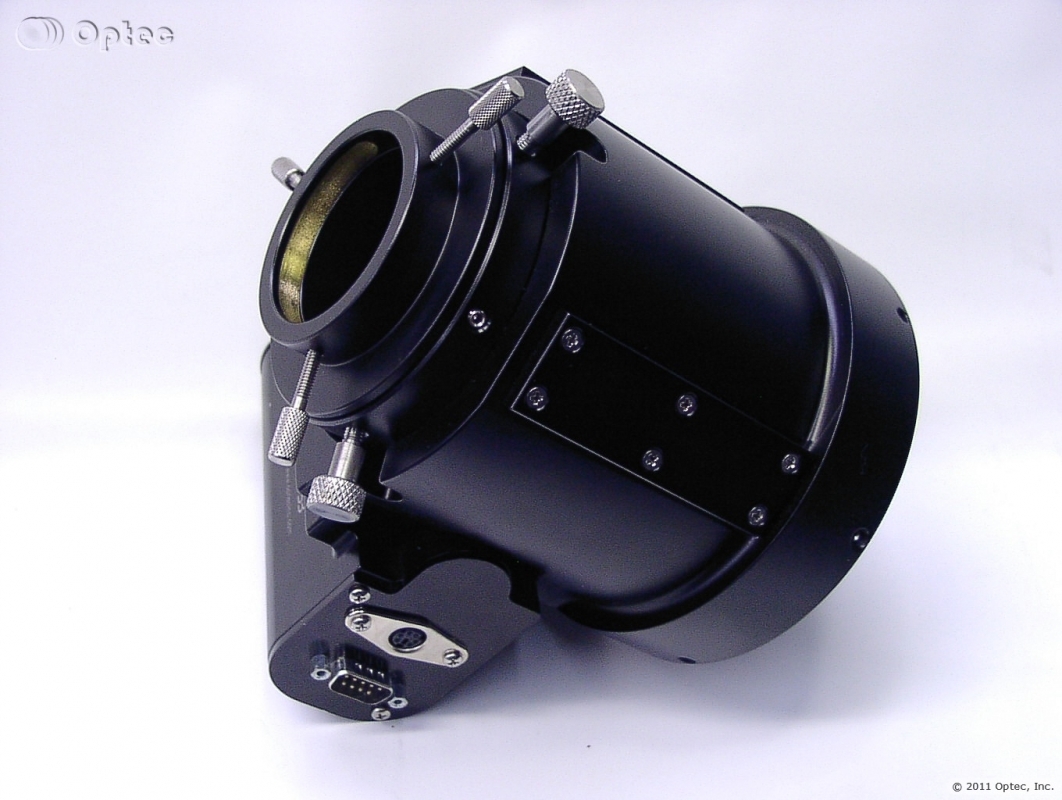

The #17804 Reducing Adapter allows equipment with a 2-inch drawtube adapter to be attached behind 3-inch OPTEC-3000 equipment including the TCF-S3, IFW-3, and Pyxis 3" rotator. This adapter includes a specially designed brass compression ring with grooves designed to hold eyepieces and other accessories tightly. Especially designed for use with the TCF-S3 series focusers.
Outside Diameter: 3.48" (88.3mm)
Overall Height: 1.38" (35mm)
Clear Aperture: 2.01" (51mm)
Weight: 6.08 oz (172 g)
Compression Ring: ridged brass internal ring
Back-focus Usage: 0.625" (15.9 mm)
Telescope Side Connection: OPTEC-3000 Dovetail
Camera Side Connection: 2" Receiver
Camera-side Compatibility:
2-inch Eyepieces,
2-inch Camera Nosepieces,
Pyxis 2" camera field rotator,
NextGen and Lepus series telecompressors,
Any 2-inch 'push-fit' accessory.
