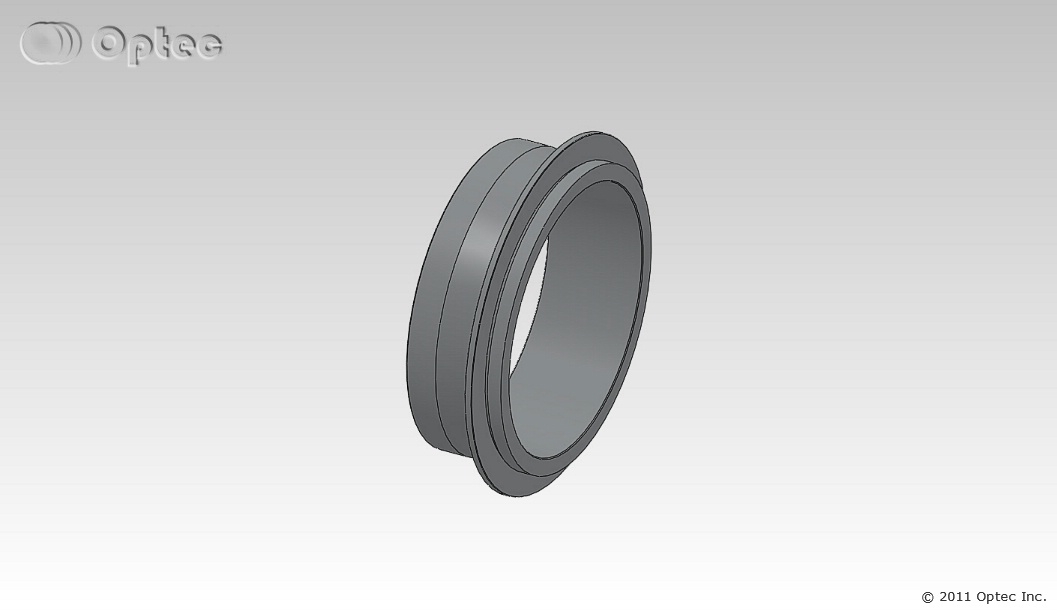

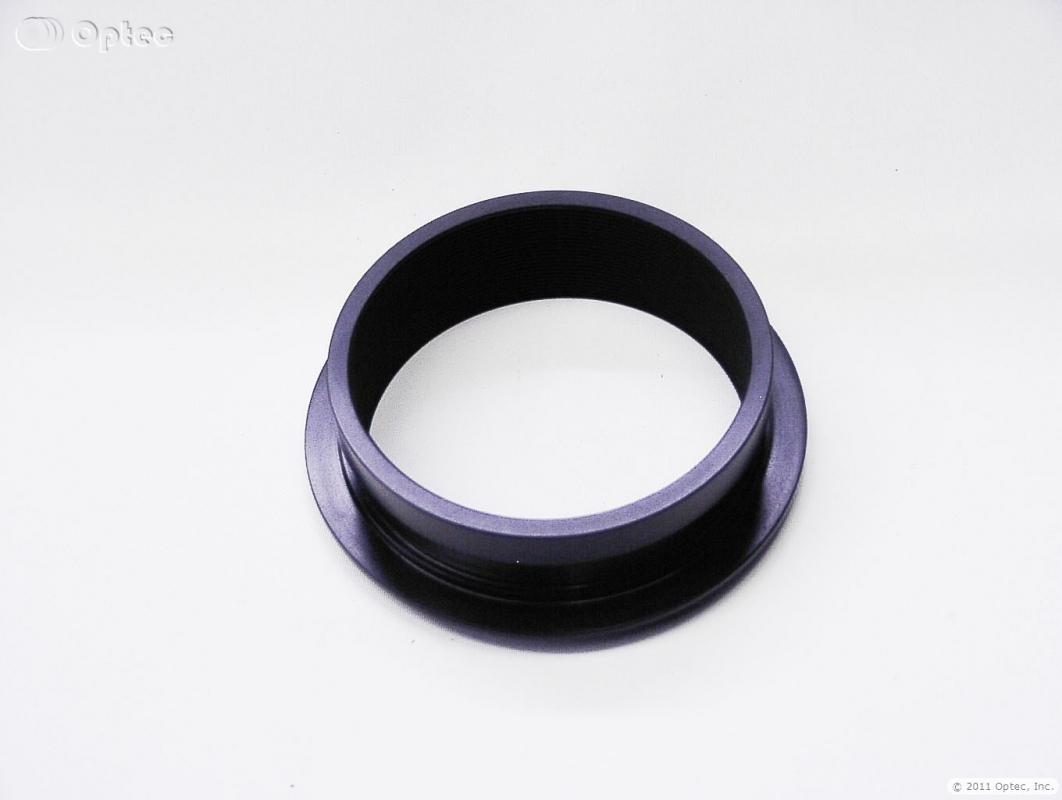

Optec-3000 Dovetail Mount to 3" x 24tpi

Apogee and SBIG have standardized on a 3-inch diameter thread with 24 threads per inch (24tpi) for many of their large format cameras and filter wheels. The #17832 adapter has been redesigned to fit any of the standard 3"x24tpi female threaded mounts. For the FLI 3.005"x24tpi thread, see Optec's #17833 mount.

Outside Diameter: 3.5" (88.9mm)

Overall Height: 1" (25.4mm)

Clear Aperture: 2.66" (67.6mm)

Weight: 2.4 oz (68g)

Back-focus Usage: 0.07" (1.78mm)

Telescope Side Connection: OPTEC-3000 Dovetail

Camera Side Connection:: Universal 3"x24tpi Male Thread
