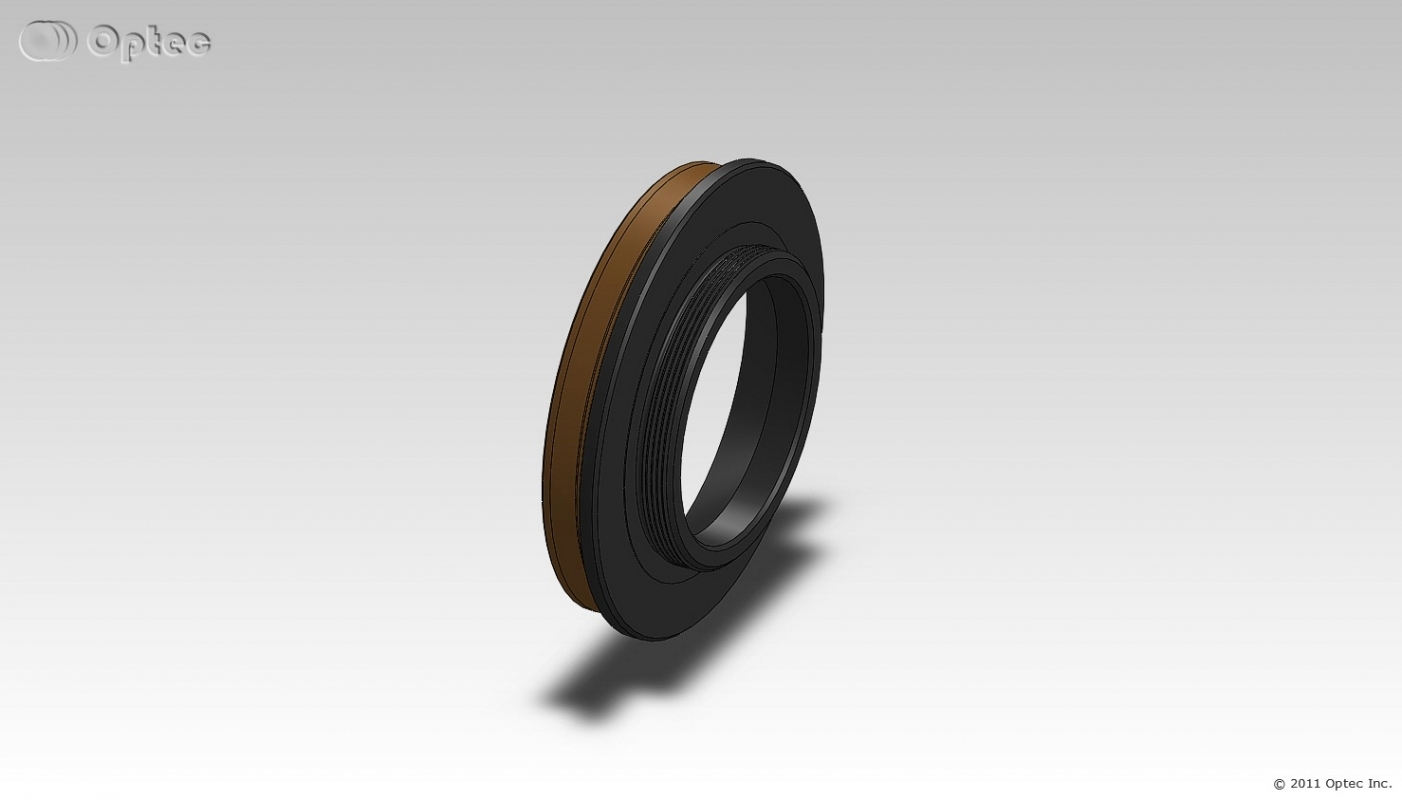

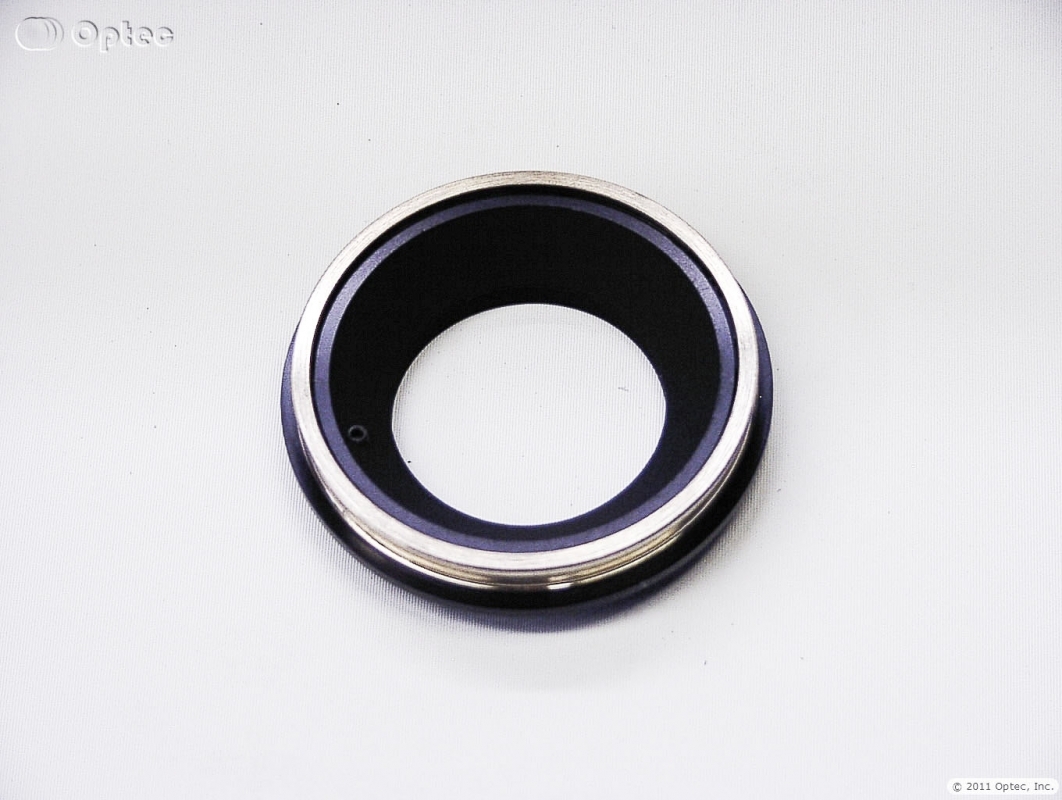

Optec-2300 T-Thread Camera Mount

Starting Price: $75.00
Price as Configured: $75.00
Brand: Optec / SKU: OP-17646
This adapter allows use of NextGEN reducers to work with most SBIG cameras without CFW wheel. However, SBIG cameras using the CFW wheel must also purchase the 17654 extender tube. This moves the camera further back so that the CFW motor does not interfere with the Pyxis. [OPTEC-2300 male dovetail // T-thread 42x0.75 mm male thread]

The #17646 T-Thread mount attaches screws directly onto equipment with a T-Thread mount and presents an OPTEC-2300 dovetail for attaching devices with an OPTEC-2300 receiver.
  • Outside Diameter: 2.45" (62.2mm)
  • Overall Height: 0.55" (14mm)
  • Clear Aperture: 1.38" (35mm)
  • Weight: 1.6 oz (45.4 g)
  • Back-focus Usage: 0.1" (2.54mm)
  • Telescope Side Connection: OPTEC-2300 Dovetail
  • Camera Side Connection: T-Thread
