Lunatico Astronomia RG-9 Hydreon Rain Sensor Adapted for Cloudwatcher
Starting Price: $69.00
Price as Configured: $69.00
Price as Configured: $69.00
Brand: Lunatico Astronomia / SKU: LA-BCWRSHY
The Hydreon RG-9 Rain sensor is available in two versions:
- Manufacturer standard version
- Ready to work with the AAG CloudWatcher includes special weather-proof plug for the AAG CloudWatcher, and 30 cm. cable
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
The Hydreon RG-9 Solid State Rain Sensor is a rainfall sensing device intended to detect and communicate when a pre-selected rain intensity has been reached or exceeded. The RG-9 is rugged, reliable, and maintenance-free.
The RG-9 uses beams of infrared light within a plastic lens about the size of a tennis ball. The round surface of the lens discourages the collection of debris, and the RG-9 has no moving parts to stick, and no water-pathways to clog. The device features an open-collector output that indicates when the selected rain intensity has been reached.
The sensitivity levels are:
- Rain Drops,
- Very Light,
- Medium,
- Heavy.
The duration of the positive detection is also selectable:
- No Hold,
- Hold Time 5 Minutes,
- Hold Time 10 Minutes,
- Hold Time 15 Minutes.
The power consumption of the RG-9 is very low, and the device is well-suited to solar-power applications.

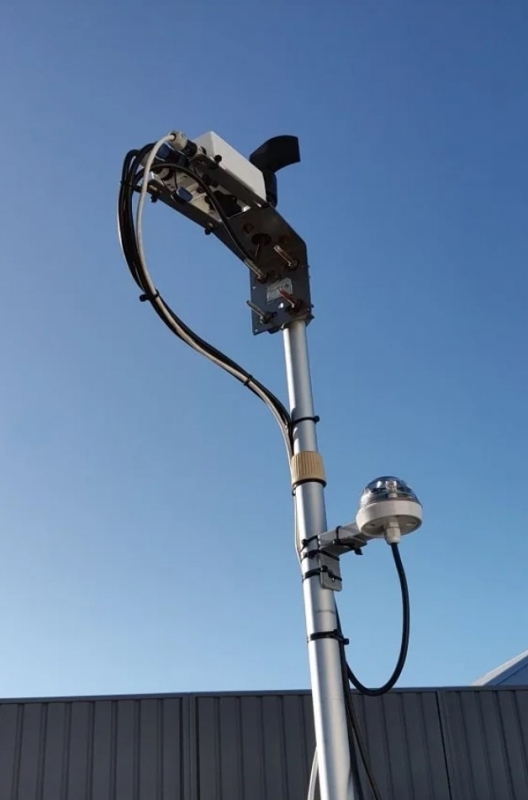

In the CW with Hydreon rain sensor, the data from this sensor is available in all the software suite of the CW, Windows, OSX, Linux, and also by the SOLO CW.
The RG-9 sensor does not indicate the amount of waterfall, just rain or dry – so the graphs will show only 2 levels (with an additional 3rd level in case of disconnection of the RG-9).
