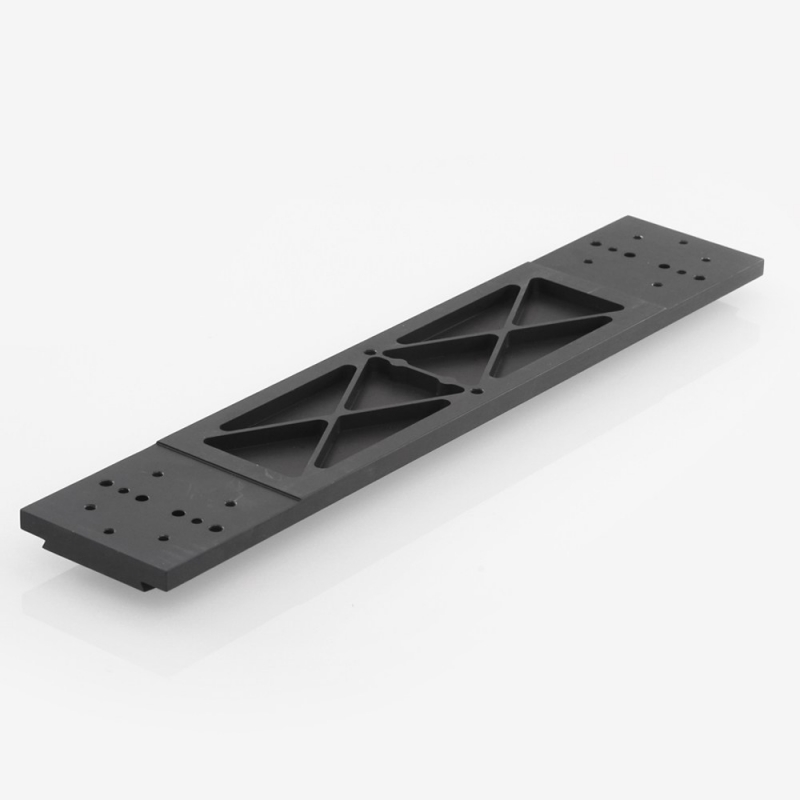

ADM D Series 21″ Connecting Bar Upgrade for Side-By-Side System

ADM D Series 21″ Connecting Bar Upgrade for Side-By-Side System

Starting Price: $109.00
Price as Configured: $109.00
Brand: ADM Accessories / SKU: ADM-DSBS-21CB
Fits D Series saddles. Connecting bar for Side-By-Side systems. Has four different hole mounting configurations on each end. Tapped 2"; center to center for 1/4×20 tpi, Tapped 3"; center to center for 5/16×18 tpi, Counterbored 1"; center to center for 1/4 SHCS, Tapped 2"; square for 1/4×20 tpi (TGAD Aiming Device). 21"; Long, 4"; Wide, .75"; Thick, Wt. 64 oz.
Recommended Add-ons and Accessories
Product Price Quantity
ADM-DSBS-DSAD - ADM D Series DSAD-STD Saddle Upgrade for Side-By-Side System
ADM-DSBS-DSAD - ADM D Series DSAD-STD Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. The hole spacing is 2" center to center for a 1/4" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7" Long, 4" Wide, .75" thick, Wt. 26 oz.
$89.00 each
ADM-DSBS-DUAL-SAD - ADM D Series DUAL-STD Saddle Upgrade for Side-By-Side System
ADM-DSBS-DUAL-SAD - ADM D Series DUAL-STD Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. Accepts both D Series and V Series dovetail bars. The hole spacing is 2" center to center for a 1/4" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7" Long, 4" Wide, 1" thick, Wt. 34 oz.

$109.00 each
ADM-DSBS-DUAL13-SAD - ADM D Series DUAL13 Saddle Upgrade for Side-By-Side System
ADM-DSBS-DUAL13-SAD - ADM D Series DUAL13 Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. Accepts both D Series and V Series dovetail bars. Required for center mounting saddle. The hole spacing is 3" center to center for a 5/16" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 13" Long, 4" Wide, 1" thick, Wt. 60 oz.
$139.00 each
ADM-DSBS-VSAD - ADM D Series VSAD Saddle Upgrade for Side-By-Side System
ADM-DSBS-VSAD - ADM D Series VSAD Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. The hole spacing is 2" center to center for a 1/4" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 6" Long, 2.5" Wide, .75" thick, Wt. 16 oz.
$79.00 each
ADM-DSBS-MINIMAX - ADM D Series MINI-MAX ALT/AZ Aiming Device Upgrade for Side-By-Side System
ADM-DSBS-MINIMAX - ADM D Series MINI-MAX ALT/AZ Aiming Device Upgrade for Side-By-Side System
About This Product
-Alternative to adjustable guidescope rings.
-Supports guidescope/finderscope with tube rings and dovetail bar for added stability and simple adjustability.
-Used for co-aligning two optical tubes for viewing the same target or offsetting two optical tubes to find a suitable guidestar for autoguiding.
-Designed entirely for the Vixen "V" series of dovetail bars to help reduce the overall weight to under 2.1 lbs.
-Male version bolts directly to V Series or D Series connecting dovetail bars
-Capable of handling any guidescope under 10lbs.
-10 degrees of Azimuth adjustment and 5 degrees of altitude adjustment.
-6.4" long and adds approximately 1.6" of height (from top of dovetail on OTA to bottom dovetail on guidescope)
-CNC machined from aircraft quality 6061 aluminum. -All components are anodized aluminum and stainless steel for a beautiful finish and long lasting durability.
$319.00 each
ADM-DSBS-MAX - ADM D Series MAX Guider ALT/AZ Aiming Device Upgrade for Side-By-Side System
ADM-DSBS-MAX - ADM D Series MAX Guider ALT/AZ Aiming Device Upgrade for Side-By-Side System
About This Product
-Alternative to adjustable guidescope rings.
-Supports guidescope/finderscope with tube rings and dovetail bar for added stability and simple adjustability.
-Used for co-aligning two optical tubes for viewing the same target or offsetting two optical tubes to find a suitable guidestar for autoguiding.
-Attaches to D Series of dovetail bars, accepts D or V Series dovetail bars.
--Male version bolts directly to V Series or D Series connecting dovetail bars
-Capable of handling guidescopes under 15lbs.
-10 degrees of Azimuth adjustment and 5 degrees of altitude adjustment.
-Wt. 3.7 lbs. 7.5" long and adds approximately 1.5" of height (from top of dovetail on OTA to bottom dovetail on guidescope)
-CNC machined from aircraft quality 6061 aluminum.
-All components are anodized aluminum and stainless steel for a beautiful finish and long lasting durability.
$419.00 each
