ADM D Series Side-By-Side System

ADM D Series Side-By-Side System

Starting Price: $329.00
Price as Configured: $329.00
Brand: ADM Accessories / SKU: ADM-DSBS-DUAL

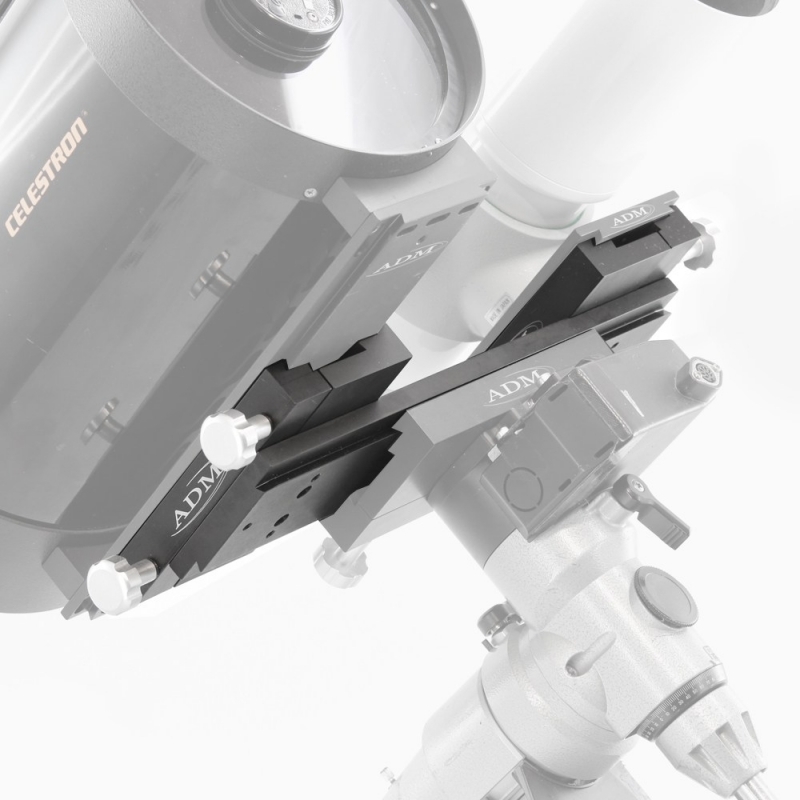

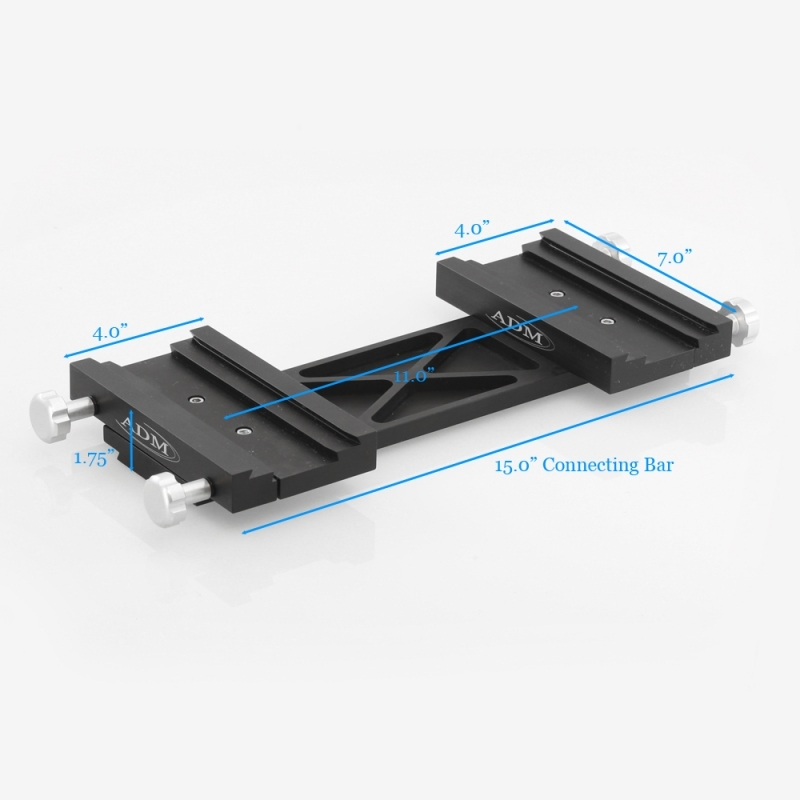

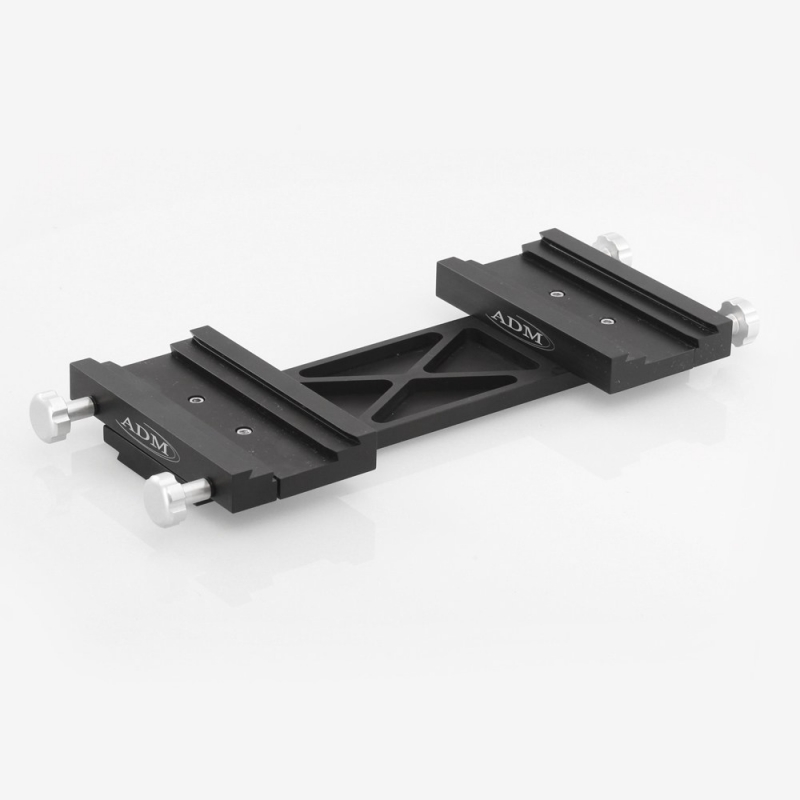

Fits D Series Saddles. Side-By-Side dovetail plate. Incorporates two saddle plates mounted parallel to each other. Used for mounting two optical systems side by side, by rotating the saddle 90 degrees. Accepts D series or V Series dovetail plates. Total thickness 1.75″, Saddle plate separation 11.0″ center to center, Wt. 7.2 lbs.

Includes:
-2x DUAL-STD
-1x 15″ Dovetail Connecting Bar
-mounting hardware
-2x safety stops
Recommended Add-ons and Accessories
Product Price Quantity
ADM-DSBS-DUAL13-SAD - ADM D Series DUAL13 Saddle Upgrade for Side-By-Side System
ADM-DSBS-DUAL13-SAD - ADM D Series DUAL13 Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. Accepts both D Series and V Series dovetail bars. Required for center mounting saddle. The hole spacing is 3" center to center for a 5/16" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 13" Long, 4" Wide, 1" thick, Wt. 60 oz.
$139.00 each
ADM-DSBS-DUAL-SAD - ADM D Series DUAL-STD Saddle Upgrade for Side-By-Side System
ADM-DSBS-DUAL-SAD - ADM D Series DUAL-STD Saddle Upgrade for Side-By-Side System
About This Product
Fits D Series connecting bar. Accepts both D Series and V Series dovetail bars. The hole spacing is 2" center to center for a 1/4" socket head cap screw. Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7" Long, 4" Wide, 1" thick, Wt. 34 oz.

$109.00 each
