ADM D Series MAX Guider ALT/AZ Aiming Device Upgrade for Side-by-Side Systems

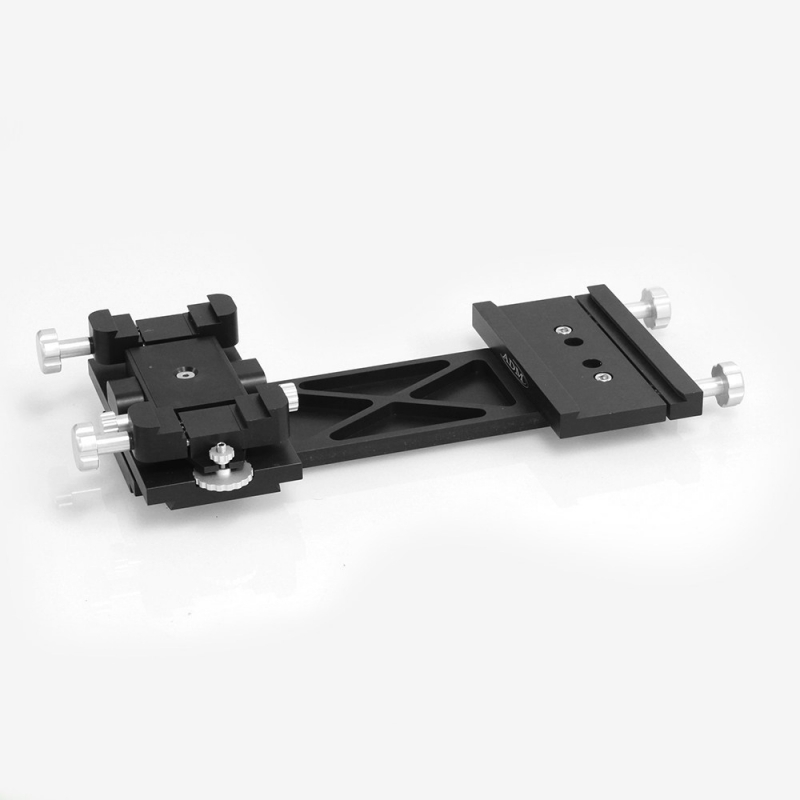

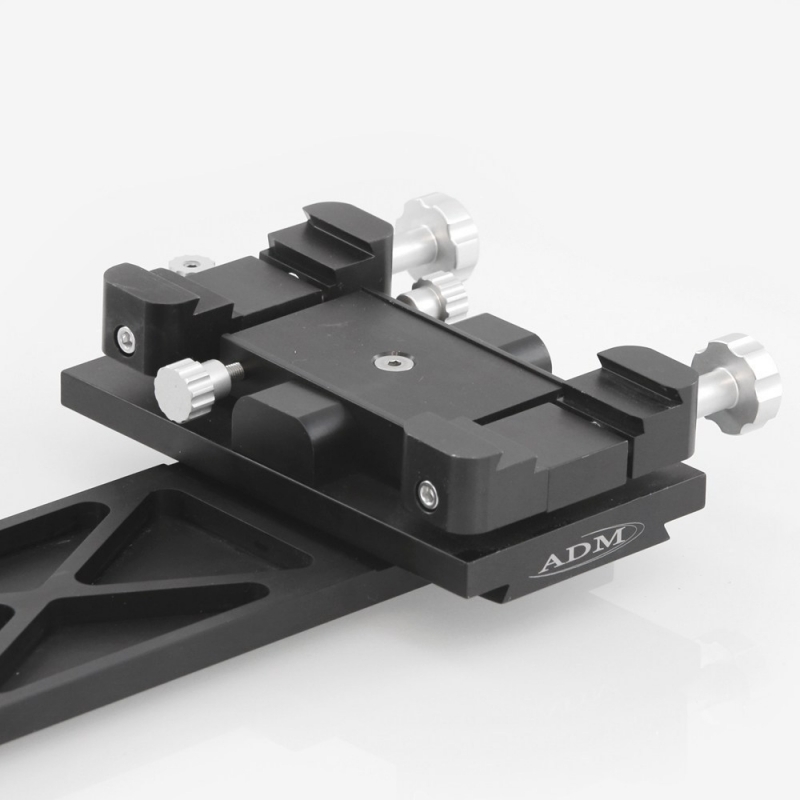

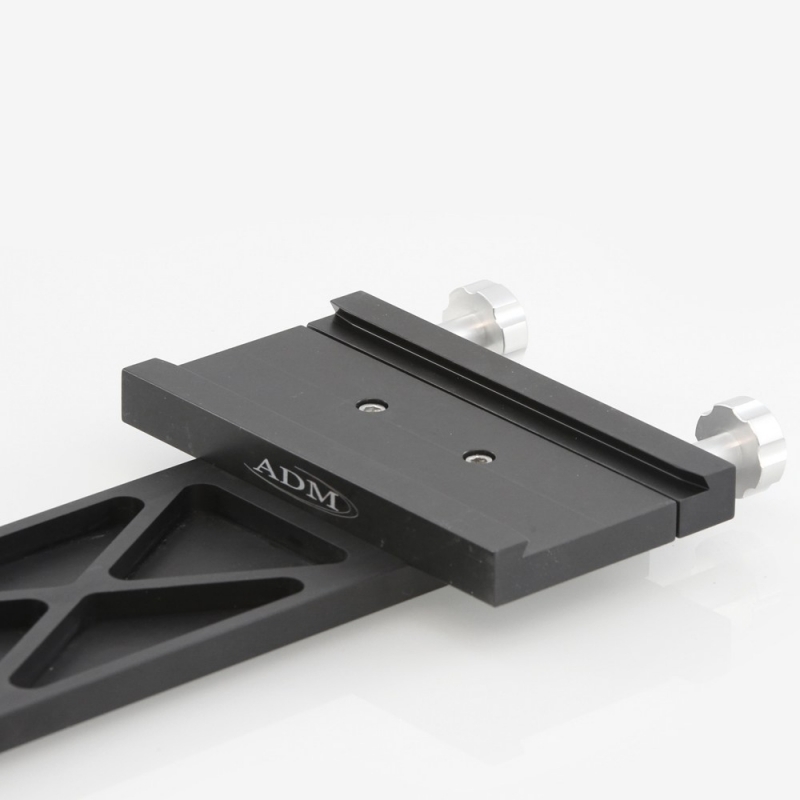

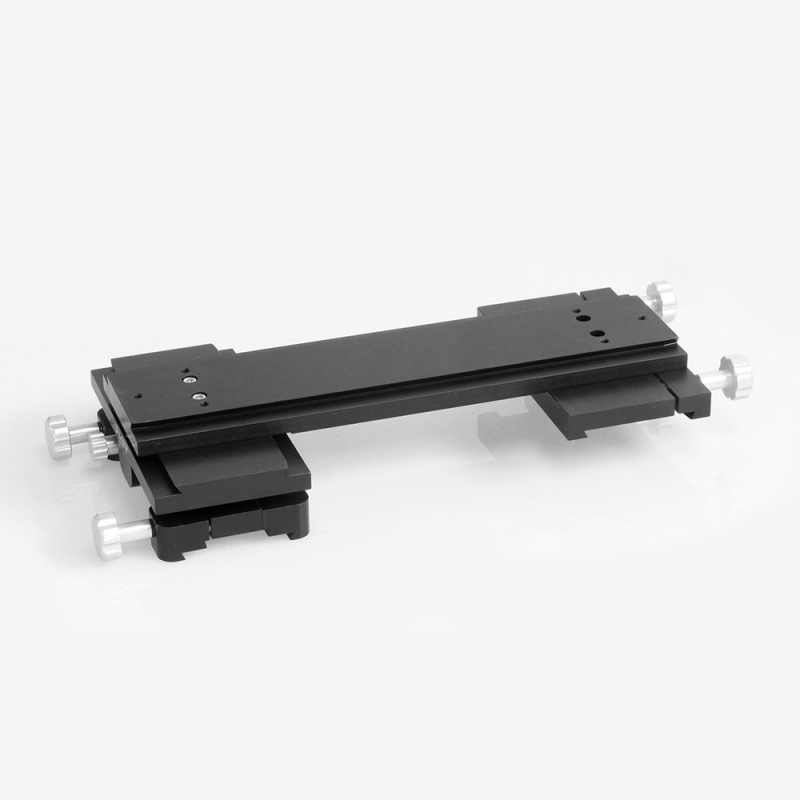

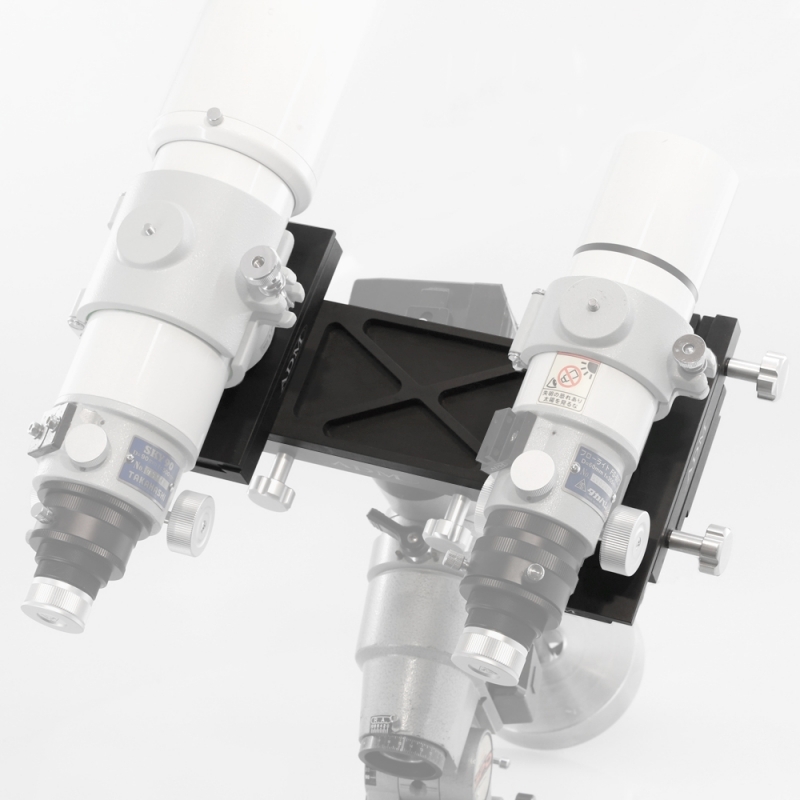

Fits D Series Saddles. Side-By-Side dovetail plate. Incorporates one DSAD saddle plate and one MAX-M mounted parallel to each other. Used for mounting two optical systems side by side, by rotating the saddle 90 degrees. The MAX-M allows movement of the pointing position of the second scope to match the field of view of the main telescope. The DSAD Accepts D series. The MAX-M accepts both D Series and V Series dovetail bars. Saddle plate separation 11.0″ center to center, Wt. 8.6 lbs
