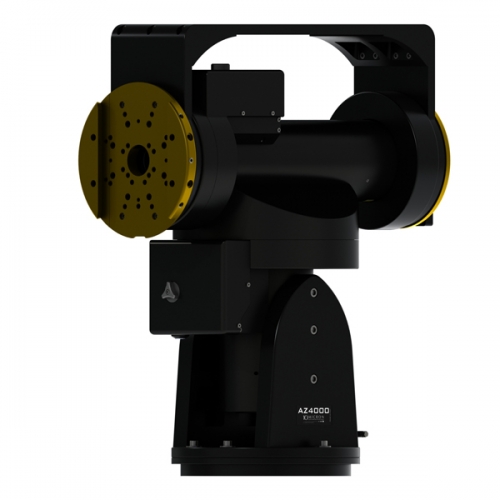

10Micron AZ4000 HPS Alt-Azimuth Mount

10Micron AZ4000 HPS Alt-Azimuth Mount

Starting Price: $31,818.00
Price as Configured: $31,818.00
Brand: 10Micron Astro Technologies / SKU: 10M-4000AZ
10Micron products are serviced in the United States by Deep Space Products. We are proud to be the only certified servicer and support provider for 10Micron products in the U.S.
You can get an additional discount for hosting your new mount at DSP Remote in southwest New Mexico. Talk to us before you place your order so we can give you a discount code, and see more about DSP Remote at www.dspremote.com.

Please note that shipping is calculated when the mount is completed and ready to ship. It is not included in the checkout price.

Please inquire about availability before placing your order.
Single or Dual Scope Mounting Package (Required)
announcement
10M-4199 - 10Micron Mandatory Shipping Kit (includes steel pier adapter) (Required)
announcement
Recommended Add-ons and Accessories
Product Price Quantity
10M-4083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 4000HPS Mounts
10M-4083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 4000HPS Mounts
$433.00 each
10M-4545 - 10Micron Clamping Plate Flange Adapter for 4000HPS Mounts (required for 3" and 4" saddles)
10M-4545 - 10Micron Clamping Plate Flange Adapter for 4000HPS Mounts (required for 3" and 4" saddles)
$282.00 each
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
About This Product
The Losmandy dovetail clamping plate 3” allow the use of standard Losmandy slide bar mounted optical tubes; this product is all CNC machined, black anodized aluminum. Two locking knobs ensure “top of safety” for your instruments. Lenght: 200mm.
$241.00 each
10M-2235 - 10Micron "Maxi" D-Series (3") Dovetail Clamping Plate, 350mm
10M-2235 - 10Micron "Maxi" D-Series (3") Dovetail Clamping Plate, 350mm
About This Product
The “Maxi”-dovetail clamping plate 4″ XL is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 350mm; 3 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.
$411.00 each
10M-2105 - 10Micron D-Series (3") Side-by-Side Bar and Saddles
10M-2105 - 10Micron D-Series (3") Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a standard 3” dovetail bar (Losmandy compatible) #10M2130; the clamping plates are two 3” Losmandy compatible (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: approx. 210, 245 and 281mm (8.3”, 9.6”, 11”). Note: – The GM1000 HPS Mount needs the #10M1105 Adapter in order to mantain the corret encoder’s position references – All the other mounts require a #10M2085 or #10M2185 3″ Losmandy clamping plate.
$565.00 each
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
About This Product
The “Maxi”-dovetail clamping plate 4″ is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 200mm; 2 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.
$265.00 each
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a 4” dovetail bar 400mm long with special threaded holes (#10M2199); the clamping plates are 3” Losmandy compatible and 200mm long (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: appr. 210, 245 and 281mm (8.3”, 9.6”, 11”). Included in the set is a Maxi clamping plate (#10M2135) which fits directly on the GM2000 mounts and via the following adapters on the GM3000 and GM4000 mounts: #10M3545 | Flange adapter for clamping plates (GM3000) #10M4545 | Flange adapter for clamping plates (GM4000)
$837.00 each
10M-2100XL - 10Micron Lateral Double 4" Plate "Maxi-dual XL" - 400mm
10M-2100XL - 10Micron Lateral Double 4" Plate "Maxi-dual XL" - 400mm
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a 4” dovetail bar 400mm long with special threaded holes (#10M2199); the clamping plates are 3” Losmandy compatible and 350mm long (#10M2185). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: appr. 210, 245 and 281mm (8.3”, 9.6”, 11”). Included in the set is a Maxi clamping plate (#10M2135) which fits directly on the GM2000 mounts and via the following adapters on the GM3000 and GM4000 mounts: #10M3545 | Flange adapter for clamping plates (GM3000) #10M4545 | Flange adapter for clamping plates (GM4000)
$959.00 each
10M-4550 - 10Micron 5" Wide Dovetail Clamping Plate
10M-4550 - 10Micron 5" Wide Dovetail Clamping Plate
About This Product
This 5" dovetail clamping plate is a sturdy, black aluminum anodized, and machined clamp. It is provided with three safety locking screws and is designed to accommodate very heavy instruments. Designed for the 4000HPS mounts, it’s also suitable for the 3000HPS mounts.
$439.00 each
10M-4555 - 10Micron Giant 8" Wide Dovetail Clamping Plate
10M-4555 - 10Micron Giant 8" Wide Dovetail Clamping Plate
About This Product
The Giant Dovetail clamping plate 8” is an extra sturdy, black aluminum anodized machined clamp suitable for 8″ dovetail bars including those for Planewave OTA’s CDK 17, CDK 20 and CDK 24. Although it fits the medium-size the 2000HPS mounts, this clamping plate is specially recommended for very heavy optical configurations on the GM3000 and GM4000 mounts.
$560.00 each
10M-4090 - 10Micron Steel Pier Adapter for 4000HPS Mounts (one is included with the mandatory shipping kit)
10M-4090 - 10Micron Steel Pier Adapter for 4000HPS Mounts (one is included with the mandatory shipping kit)
About This Product
This Pier flange adapter is made of electroplated steel and it’s designed to accommodate the GM/AZ4000 mounts on top of a flat-topped pier. One of these is supplied with the mandatory shipping kit (#10M4199).
$297.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
10M-4083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 4000HPS Mounts
10M-4083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 4000HPS Mounts
$433.00
Qty:
View Details
10M-4545 - 10Micron Clamping Plate Flange Adapter for 4000HPS Mounts (required for 3" and 4" saddles)
10M-4545 - 10Micron Clamping Plate Flange Adapter for 4000HPS Mounts (required for 3" and 4" saddles)
$282.00
Qty:
View Details
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
$241.00
Qty:
View Details
« Back to All Add-ons
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
About This Product
The Losmandy dovetail clamping plate 3” allow the use of standard Losmandy slide bar mounted optical tubes; this product is all CNC machined, black anodized aluminum. Two locking knobs ensure “top of safety” for your instruments. Lenght: 200mm.
10M-2235 - 10Micron "Maxi" D-Series (3") Dovetail Clamping Plate, 350mm
10M-2235 - 10Micron "Maxi" D-Series (3") Dovetail Clamping Plate, 350mm
$411.00
Qty:
View Details
« Back to All Add-ons
10M-2235 - 10Micron "Maxi" D-Series (3") Dovetail Clamping Plate, 350mm
About This Product
The “Maxi”-dovetail clamping plate 4″ XL is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 350mm; 3 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.
10M-2105 - 10Micron D-Series (3") Side-by-Side Bar and Saddles
10M-2105 - 10Micron D-Series (3") Side-by-Side Bar and Saddles
$565.00
Qty:
View Details
« Back to All Add-ons
10M-2105 - 10Micron D-Series (3") Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a standard 3” dovetail bar (Losmandy compatible) #10M2130; the clamping plates are two 3” Losmandy compatible (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: approx. 210, 245 and 281mm (8.3”, 9.6”, 11”). Note: – The GM1000 HPS Mount needs the #10M1105 Adapter in order to mantain the corret encoder’s position references – All the other mounts require a #10M2085 or #10M2185 3″ Losmandy clamping plate.
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
$265.00
Qty:
View Details
« Back to All Add-ons
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
About This Product
The “Maxi”-dovetail clamping plate 4″ is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 200mm; 2 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
$837.00
Qty:
View Details
« Back to All Add-ons
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a 4” dovetail bar 400mm long with special threaded holes (#10M2199); the clamping plates are 3” Losmandy compatible and 200mm long (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: appr. 210, 245 and 281mm (8.3”, 9.6”, 11”). Included in the set is a Maxi clamping plate (#10M2135) which fits directly on the GM2000 mounts and via the following adapters on the GM3000 and GM4000 mounts: #10M3545 | Flange adapter for clamping plates (GM3000) #10M4545 | Flange adapter for clamping plates (GM4000)
10M-2100XL - 10Micron Lateral Double 4" Plate "Maxi-dual XL" - 400mm
10M-2100XL - 10Micron Lateral Double 4" Plate "Maxi-dual XL" - 400mm
$959.00
Qty:
View Details
« Back to All Add-ons
10M-2100XL - 10Micron Lateral Double 4" Plate "Maxi-dual XL" - 400mm
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a 4” dovetail bar 400mm long with special threaded holes (#10M2199); the clamping plates are 3” Losmandy compatible and 350mm long (#10M2185). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: appr. 210, 245 and 281mm (8.3”, 9.6”, 11”). Included in the set is a Maxi clamping plate (#10M2135) which fits directly on the GM2000 mounts and via the following adapters on the GM3000 and GM4000 mounts: #10M3545 | Flange adapter for clamping plates (GM3000) #10M4545 | Flange adapter for clamping plates (GM4000)
10M-4550 - 10Micron 5" Wide Dovetail Clamping Plate
10M-4550 - 10Micron 5" Wide Dovetail Clamping Plate
$439.00
Qty:
View Details
« Back to All Add-ons
10M-4550 - 10Micron 5" Wide Dovetail Clamping Plate
About This Product
This 5" dovetail clamping plate is a sturdy, black aluminum anodized, and machined clamp. It is provided with three safety locking screws and is designed to accommodate very heavy instruments. Designed for the 4000HPS mounts, it’s also suitable for the 3000HPS mounts.
10M-4555 - 10Micron Giant 8" Wide Dovetail Clamping Plate
10M-4555 - 10Micron Giant 8" Wide Dovetail Clamping Plate
$560.00
Qty:
View Details
« Back to All Add-ons
10M-4555 - 10Micron Giant 8" Wide Dovetail Clamping Plate
About This Product
The Giant Dovetail clamping plate 8” is an extra sturdy, black aluminum anodized machined clamp suitable for 8″ dovetail bars including those for Planewave OTA’s CDK 17, CDK 20 and CDK 24. Although it fits the medium-size the 2000HPS mounts, this clamping plate is specially recommended for very heavy optical configurations on the GM3000 and GM4000 mounts.
10M-4090 - 10Micron Steel Pier Adapter for 4000HPS Mounts (one is included with the mandatory shipping kit)
10M-4090 - 10Micron Steel Pier Adapter for 4000HPS Mounts (one is included with the mandatory shipping kit)
$297.00
Qty:
View Details
« Back to All Add-ons
10M-4090 - 10Micron Steel Pier Adapter for 4000HPS Mounts (one is included with the mandatory shipping kit)
About This Product
This Pier flange adapter is made of electroplated steel and it’s designed to accommodate the GM/AZ4000 mounts on top of a flat-topped pier. One of these is supplied with the mandatory shipping kit (#10M4199).
10M-2125 - 10 Micron 3" Losmandy Dovetail Bar, 300mm (Undrilled)
10M-2125 - 10 Micron 3" Losmandy Dovetail Bar, 300mm (Undrilled)
$116.00
Qty:
View Details
« Back to All Add-ons
10M-2125 - 10 Micron 3" Losmandy Dovetail Bar, 300mm (Undrilled)
About This Product
300 mm length dovetail bar, Losmandy style (3”), made of black an3odized aluminum; it can be used directly on the GM1000 Mount.

Material: Black anodize, CNC machined aluminum
Losmandy style dovetail (3”)
Length: 300mm (11.8”)
10M-2130 - 10Micron 3" Dovetail Bar, 400mm (Undrilled)
10M-2130 - 10Micron 3" Dovetail Bar, 400mm (Undrilled)
$119.00
Qty:
View Details
« Back to All Add-ons
10M-2130 - 10Micron 3" Dovetail Bar, 400mm (Undrilled)
About This Product
400 mm length dovetail bar, Losmandy style (3”), made of black anodized aluminum; it can be used directly on the GM1000 mount or on the other mounts with suitable adapters.

Material: Black anodize, CNC machined aluminum
Losmandy style dovetail (3”)
Length: 400mm (15.8”)
10M-2130XL - 10Micron 3″ Losmandy Dovetail Bar, 500mm (Undrilled)
10M-2130XL - 10Micron 3″ Losmandy Dovetail Bar, 500mm (Undrilled)
$142.00
Qty:
View Details
« Back to All Add-ons
10M-2130XL - 10Micron 3″ Losmandy Dovetail Bar, 500mm (Undrilled)
About This Product
500 mm length dovetail bar, Losmandy style (3”), made of black anodized aluminum; it can be used directly on the GM1000 mount or on the other mounts with a suitable adapter.

Material: Black anodize, CNC machined aluminum
Losmandy style dovetail (3”)
Length: 500mm (19.7”)
10M-2199 - 10 Micron 4" Dovetail Bar, 400mm (Undrilled)
10M-2199 - 10 Micron 4" Dovetail Bar, 400mm (Undrilled)
$142.00
Qty:
View Details
« Back to All Add-ons
10M-2199 - 10 Micron 4" Dovetail Bar, 400mm (Undrilled)
About This Product
400mm length dovetail bar, 10Micron 4” style, made of black anodized aluminum, compatible with the #10M2135 “Maxi”-dovetail clamping plate 4″. This configuration is suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup.

Material: Black anodize, CNC machined aluminum
4”, 10Micron style dovetail )
Length: 400mm (15.7”)
10M-2199XL - 10 Micron 4" Dovetail Bar XL, 500mm (Undrilled)
10M-2199XL - 10 Micron 4" Dovetail Bar XL, 500mm (Undrilled)
$168.00
Qty:
View Details
« Back to All Add-ons
10M-2199XL - 10 Micron 4" Dovetail Bar XL, 500mm (Undrilled)
About This Product
500mm length dovetail bar, 10Micron 4” style, made of black anodized aluminum, compatible with the #10M2135 “Maxi”-dovetail clamping plate 4″. This configuration is suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup.

Material: Black anodize, CNC machined aluminum
4”, 10Micron style dovetail )
Length: 500mm (19.7”)
10M-4560 - 10Micron 5" Wide Dovetail Slide Bar (500mm)
10M-4560 - 10Micron 5" Wide Dovetail Slide Bar (500mm)
$207.00
Qty:
View Details
10M-4540 - 10Micron Giant 8" Wide Dovetail Slide Bar (500mm)
10M-4540 - 10Micron Giant 8" Wide Dovetail Slide Bar (500mm)
$304.00
Qty:
View Details
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
$80.00
Qty:
View Details
« Back to All Add-ons
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
About This Product
This Switching Power Supply is a very high quality and reliable device; it accepts 110 to 240V AC input; the output ensures the proper 24V, 6.67A (160W) power supply to the v.2 GM2000HPS, GM3000HPS, GM4000HPS mounts.
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
$250.00
Qty:
View Details
« Back to All Add-ons
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
About This Product
This accessory allows to accommodate the 10Micron electronic control box on round metal pier. Made of fine machined black anodized aluminum.
10M-4199 - 10Micron Mandatory shipping Kit for 4000HPS Mounts
10M-4199 - 10Micron Mandatory shipping Kit for 4000HPS Mounts
$594.00
Qty:
View Details
« Back to All Add-ons
10M-4199 - 10Micron Mandatory shipping Kit for 4000HPS Mounts
About This Product
The GM4000 mandatory shipping kit (also suitable for the AZ4000 HPS) is composed of the GM4000 105 x 85 x 65 cm shipping wooden pallet-box (#10M4100)and the pier adapter (#10M4090). Both are necessary items when the mount will be shipped. Shipping charges will be calculated individually for each destination and will be billed separately. The included pier adapter (#10M4090) will be needed later when mounting the GM 4000 onto a pier. This strong plate of solid steel is mandatory not only to secure the mount on the pallet during transport but also later to translate the full loading capacity of the Mount onto the pier.
10M-3C - 10Micron Special Cold Temperature Option for 3000HPS Mounts
10M-3C - 10Micron Special Cold Temperature Option for 3000HPS Mounts
$3,411.00
Qty:
View Details
« Back to All Add-ons
10M-3C - 10Micron Special Cold Temperature Option for 3000HPS Mounts
About This Product
The GM3000 and AZ3000 mounts are available in a special version for very low temperature operations. This option allows the Mount to operate until -30°C (-22° F) and features the following special modifications: - Special low-temperature lubricants certified until -60°C or lower - Special copper wiring, silicone sheathed - Electronic components certified for temperatures down to -40°C - Endurance tested at low temperatures in our laboratory All 10Micron mounts feature special systems in their mechanics in order to compensate thermal variations. This option is intended for brand new mounts to be ordered; contact us for already delivered mounts.
QTY:
Price as Configured: $31,818.00
We cannot sell 10Micron products to customers outside of North and South America
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

Delivery Times

Delivery times are dependent on 10Micron production schedules and pre-production sales but should be less than three months. Arrangements can be made to take a deposit on the mount at the time of order rather than paying the full amount, depending on the predicted availability of the mount at the time of order.

Shipping Costs

Shipping prices calculated on the website are approximate and may need to be adjusted based on locations, particularly those outside the United States.

Warranty

10Micron products are warranted against defects in materials or workmanship by the original manufacturer for a period of 2 years for electronic parts and 2 years for mechanical parts. The 10 Micron warranty covers only defects that result from the normal use of the product. Damage to the mounting or accessories caused by modification, misuse, or rough handling is not covered under warranty. Furthermore, any damage to electronic components due to plugging or unplugging while powered on are also not covered.
