Pegasus Astro Indigo Off Axis Guider
Starting Price: $192.00
Price as Configured: $192.00
Price as Configured: $192.00
Brand: Pegasus Astro / SKU: PEG-INDIGOAG

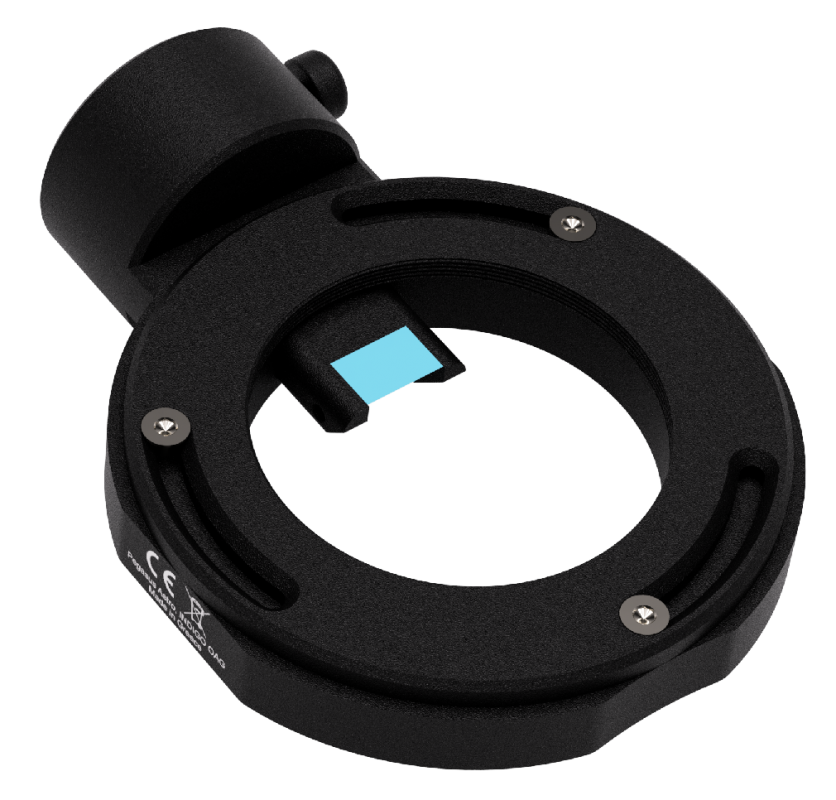

The Indigo Off Axis Guider is Pegasus Astro's thin and solid design OAG which can easily paired with the Indigo Filter Wheel. The OAG supports through holes (M2 and M3) in its body for direct connection with latest CMOS cameras and other Filter Wheels.
The main advantage having an OAG is that it uses the same optical path as your main imaging camera. This avoids any issue with differential flexure that can occur when using a separate guidescope on top of your main telescope.
![Product Help](/images/ed-product-cta.jpg)
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Thin Design
Indigo OAG has a very thin design. Its backfocus is 10mm + 4mm of the telescope adapter, 14mm in total. OAG is CNC machined of 6061 aluminium alloy which ensures a lightweight and solid piece of equipment.
Adjustable prism
The prism height can be easily adjusted to allow better illumination of the field of view of the guiding camera. If your imaging camera sensor is large, the prism can be moved (and secured with set screws) upwards to disallow blockage of the sensor’s optical path.
Large mirror
A 12×8 mm fully multicoated & anti-reflection mirror offers high illumination to your guiding camera. Stars are round and bright across the OAG‘s field.
Large Size
Indigo OAG supports the 62mm through hole pattern for direct connection with latest CMOS cameras and Filter Wheels.
Guiding camera connection is a 1.25” barrel.

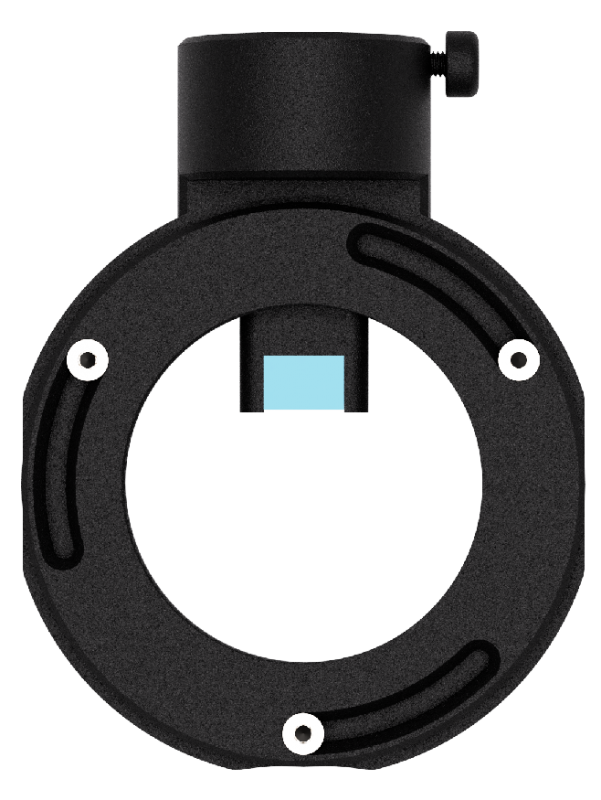

Orientation of image train framing can be achieved by the 3 screws that allow telescope adapter to slide inside the slots.
The thickness is 10mm and is design is solid enough to support heavy imaging equipment.
The clear apperture is 53.5mm.
Package Includes:

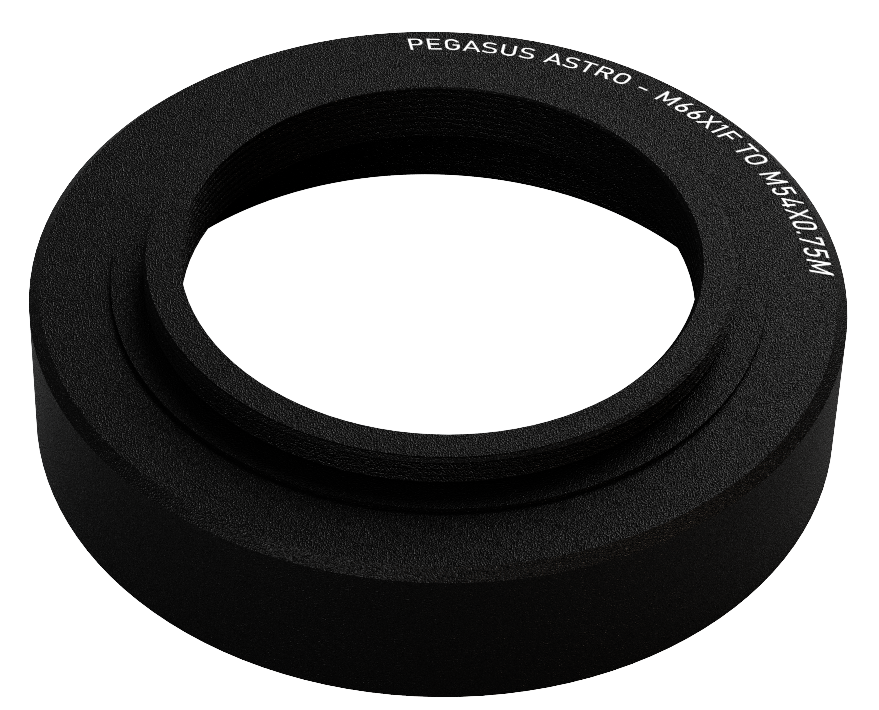

- M54F threaded adapter for telescope connection. (adds thickness of 4mm)
- M48F threaded adapter for camera connection. (adds thickness of 4mm)
![](/uimages/pegasus/INDIGO-OAG-3_t.png)

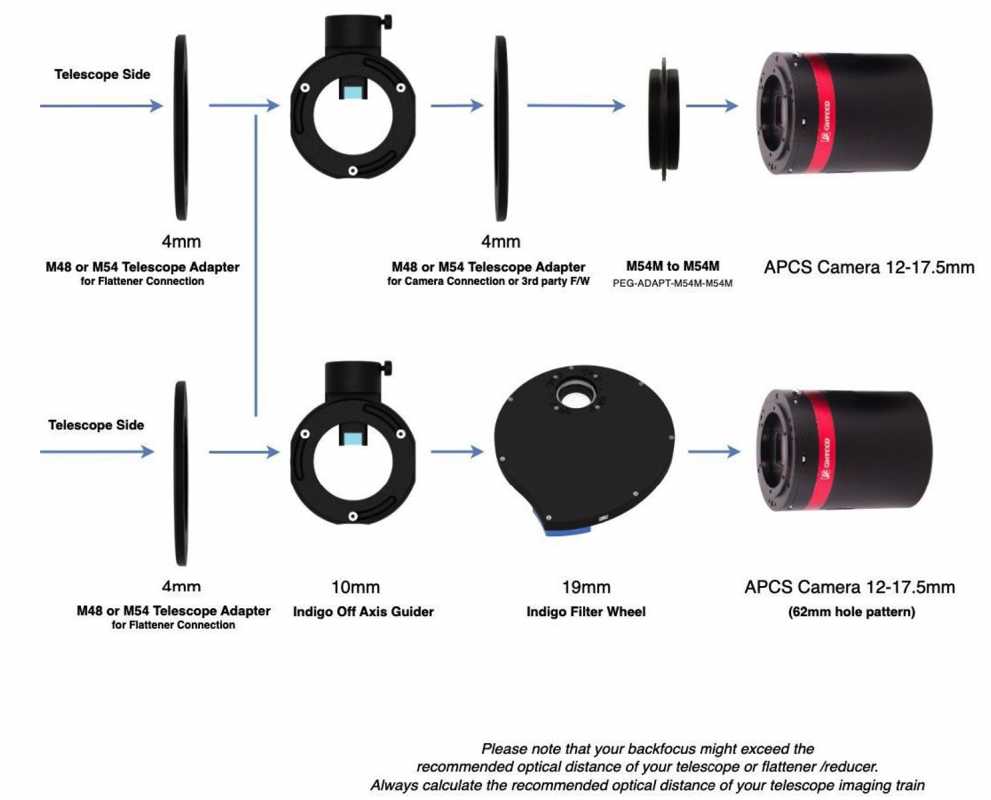

Indigo OAG + Telescope Adapters (both included)
(You can use both adapters to create a standalone OAG)

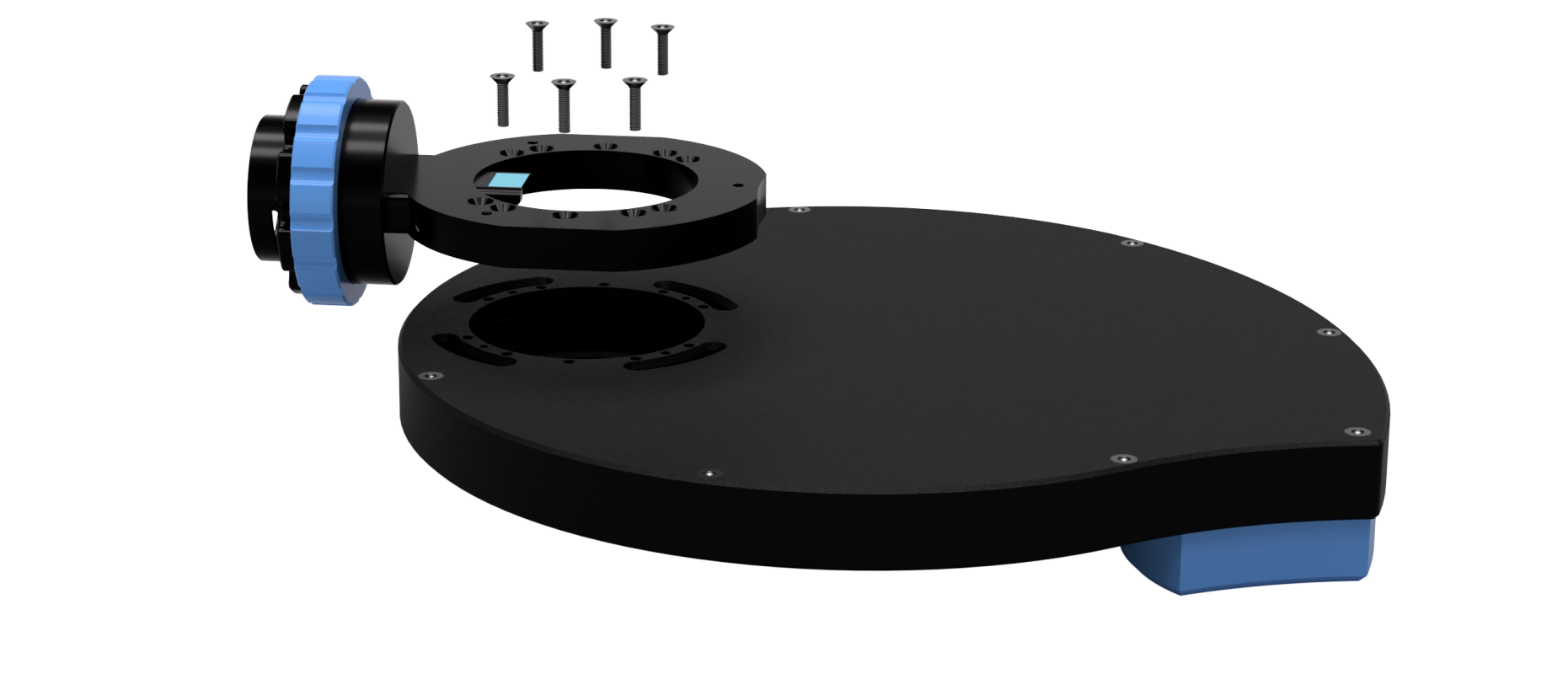

![](/uimages/pegasus/INDIGO-OAG-plus-INDIGO-fw_t.png)

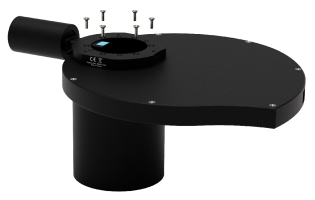

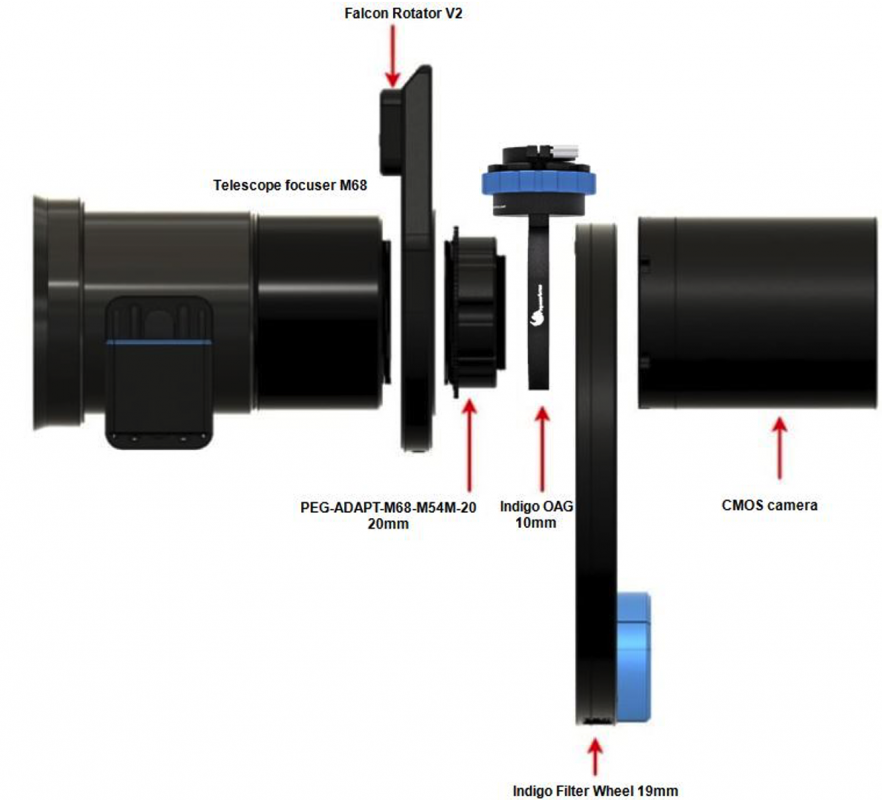

The Indigo OAG can be directly mounted onto the Indigo Filter Wheel. A combination of both products sum a 19mm + 14mm (33mm total) of backfocus optical distance.
